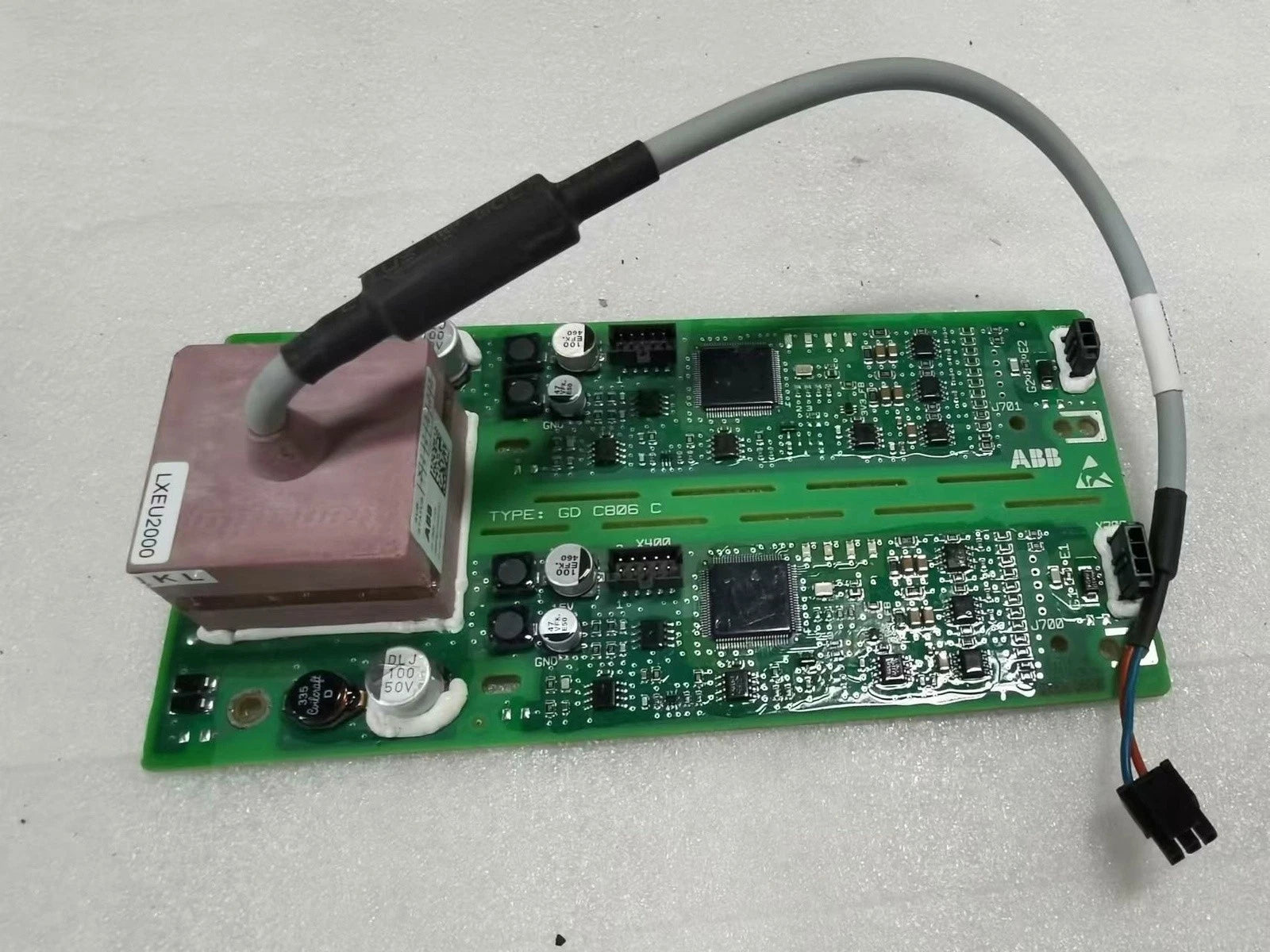

The ABB 3BHE041294R0103 GDC806 C103, also cataloged as the 3BHE041294R0103 Control Board, operates as a dedicated hardware component for real-time power conversion control and gate driver signal distribution within AC 800PEC system architectures.

System Classification and Part Structure

The ABB 3BHE041294R0103 GDC806 C103 functions as an integral control module within high-performance drive and power electronics assemblies:

• 3BHE041294R0103: Unique internal ABB manufacturing part number defining the main PCB assembly revision and hardware layout.
• GDC806 C103: Hardware type designation specifying gate drive control functionality and power stage interface parameters.
• AC 800PEC: High-speed processing platform combining digital signal processing (DSP) and field-programmable gate array (FPGA) execution for power electronics circuits.
• Tariff Code: 8537101190 classification for industrial electrical control logic boards.

Electrical and Technical Specifications

High-Speed Backplane Communications & Firmware Flash Compatibility

The board interfaces with the AC 800PEC central processor over optical or high-speed backplane links. Deterministic network protocols like Profinet or EtherNet/IP govern high-level control coordination, while internal backplane bus communication velocity handles fast pulse-width modulation (PWM) updates. Onboard firmware flash compatibility ensures synchronized parameter execution between local FPGA registers and drive logic, maintaining sub-microsecond control loops without jitter.

Package Component List

• 1 x ABB 3BHE041294R0103 GDC806 C103 Control Board
• 1 x Standard anti-static protective packaging enclosure
• 1 x Hardware installation and terminal reference manual

Assembly and Mounting Safety Guidelines

• Power De-energization: Ensure all 380-460 VAC line voltages and 24 VDC logic feeds are isolated and locked out prior to physical handling.
• ESD Prevention: Wear a grounded electrostatic discharge (ESD) wrist strap when installing or removing the control board to prevent component gate oxide damage.
• Mechanical Mounting: Secure the board into the AC 800PEC chassis using all designated factory mounting points to guarantee proper earth grounding through the board standoff pads.
• Fiber and Wire Routing: Route optical communication cables and high-voltage drive outputs in separate channels to eliminate electromagnetic noise interference.

Technical Support FAQs

• What is the main operational purpose of the 3BHE041294R0103 GDC806 C103 board?

  It provides high-speed gate control, voltage signal processing, and feedback evaluation within ABB AC 800PEC power electronic control systems.

• Does the board support live hot-swapping during converter operation?

  No. Main AC power stage lines and 24 VDC control power must be completely disconnected before replacing the control board.

• How is electrical grounding achieved on the control board frame?

  Frame ground is established directly through the metal mounting screw holes and dedicated chassis grounding pads on the PCB layout.

• What voltage range feeds the primary logic control circuitry on the board?

  The board typically operates on a regulated external 24 VDC control power supply line.

• What output frequency range can the control board manage?

  The board modulates output signals to manage power stage frequencies from 0 Hz up to 60 Hz.

• How does firmware flash compatibility affect module replacement?

  The replacement board must match the system firmware version stored in the AC 800PEC processor to ensure correct FPGA timing execution.

• What precautions should be taken regarding high voltage on the terminal connections?

  Wait for internal converter DC-link capacitors to discharge fully before touching any connected power wiring terminals.

• What is the rated switching efficiency of the board control system?

  The unit operates within a power electronics assembly designed to achieve overall power conversion efficiencies of up to 98%.
