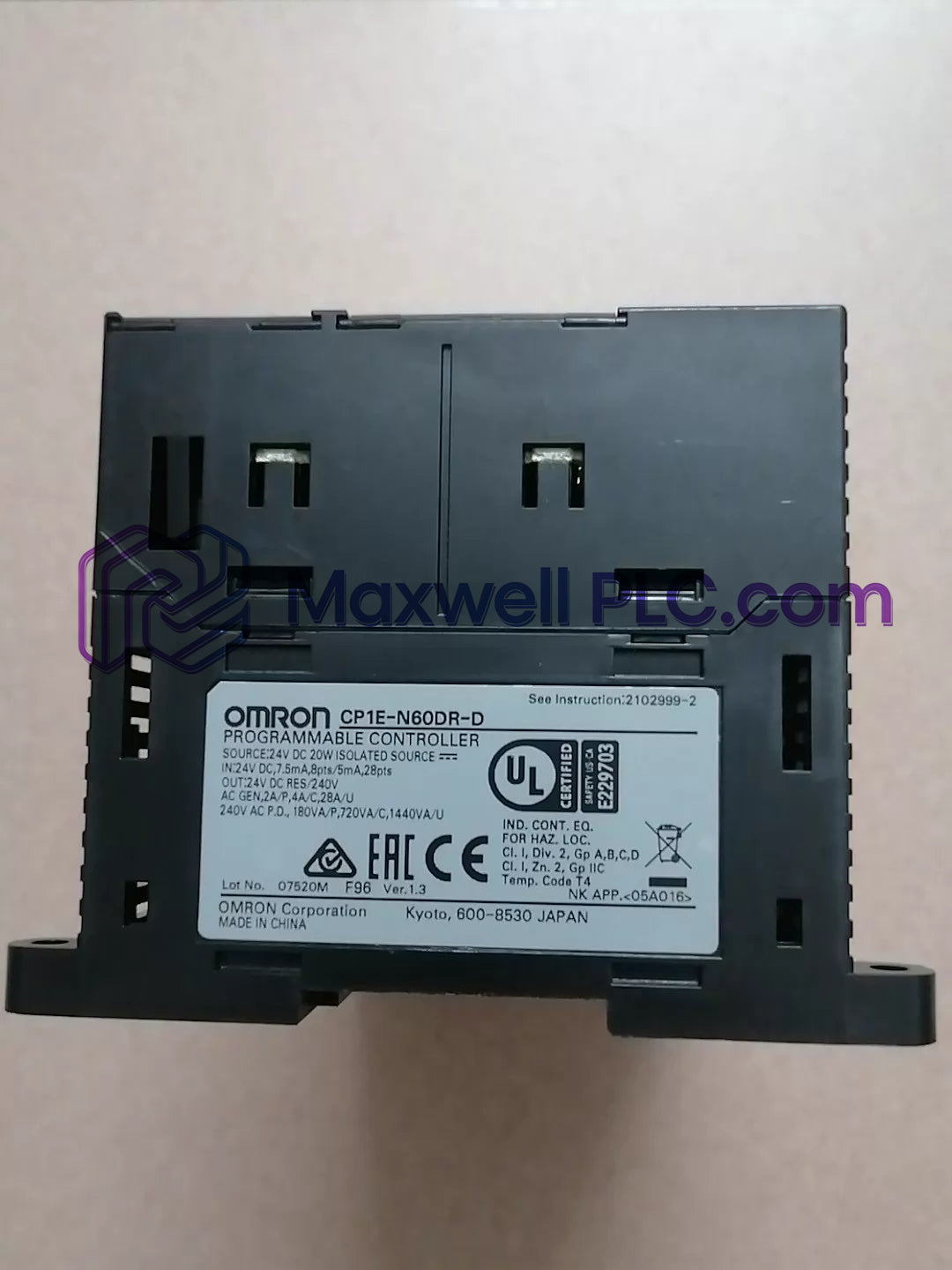

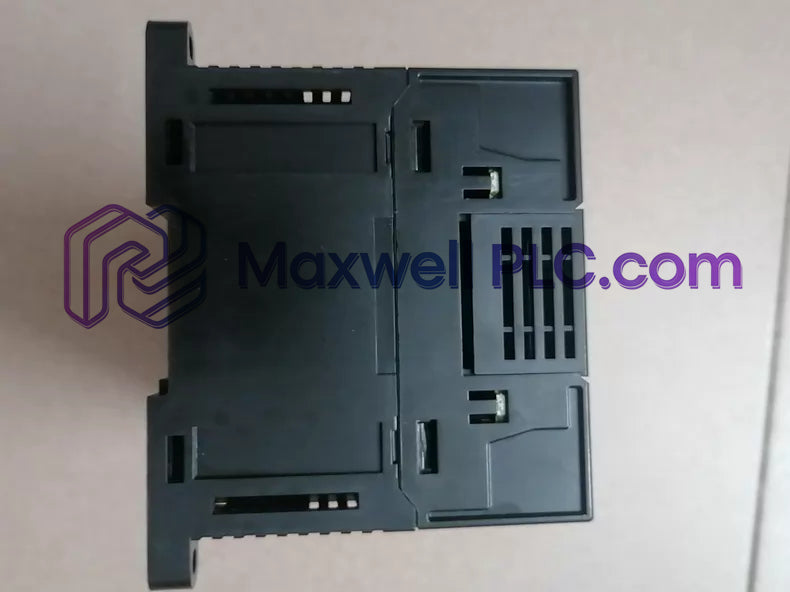

The Omron CP1E-N60DR-D serves as the primary CP1E CPU Unit Hardware utilized to execute discrete input sampling and electromechanical relay switching across CP1E control platforms.

Hardware Configuration Matrix

• CP1E: Base product designation for compact programmable controllers.

• N: Application CPU model featuring extended program capacity and option board expansion.

• 60: Total integrated I/O capacity consisting of 36 inputs and 24 outputs.

• D: Direct current (DC) input circuit layout (24 VDC nominal).

• R: Electromechanical relay contact outputs.

• D: Direct current (24 VDC) internal supply voltage requirement.

Physical & Electrical Parameters

Deterministic Network & Bus Execution

The internal processing engine maintains low-latency backplane bus communication velocity across attached CP-series expansion units. Integrated firmware flash compatibility supports seamless protocol execution over standard peripheral USB channels and optional serial boards, maintaining predictable I/O density scaling during execution cycles.

Order Manifest & Accessories

• 1 x Omron CP1E-N60DR-D CPU Controller

• 1 x Protective Terminal Guard Unit

• 1 x Hardware Instruction Sheet

Field Wiring & Mounting Protocol

• DIN-Rail Attachment: Latch the controller onto a standard 35 mm DIN rail. Secure end stops on both sides and maintain 20 mm clearance top and bottom for convection thermal heat dissipation.

• 24 VDC Power Wiring: Connect 24 VDC supply leads to the dedicated DC power terminals. Terminate the protective earth terminal directly to panel ground using a short 2.0 mm sq wire.

• Inductive Load Protection: Install surge absorbers or flyback diodes across inductive relay output loads to suppress arc discharge and extend contact operating lifetime.

Technical Query Documentation

• What is the response status of relay outputs during a supply voltage drop below 20.4 VDC?

  The CPU detects an undervoltage condition, halts execution, and forces all relay output contacts to open to preserve safe state conditions.

• Can CP1E-N60DR-D expansion units be connected while the controller is powered?

  No, attaching or detaching expansion modules under powered conditions causes hardware fault trips and risks damaging the backplane bus interface.

• How are 24 VDC inputs configured for sink or source field devices?

  Inputs accept sink or source wiring depending on how the common (COM) terminal is tied to the 24 VDC field power supply reference rail.

• What memory area stores high-speed counter pulse counts?

  Dedicated auxiliary bits and channel registers store real-time high-speed counter values directly within the internal memory map.

• Is an external battery required to hold user program memory?

  User programs and parameter settings are written to non-volatile flash memory, eliminating the need for battery power for logic retention.

• What is the purpose of the option board slot on the N-type CPU?

  The slot accepts option boards for RS-232C or RS-485 serial communication interfaces without increasing the physical footprint.

• How is line noise immunity optimized on DC input field lines?

  Route input wiring in grounded metal conduit separate from high-voltage AC cabling and keep total run lengths under 30 meters.

• What LED indicator status signals a program corruption fault?

  The front-panel ERR/ALM LED illuminates red continuously when an invalid instruction or memory checksum fault is detected by the CPU.
