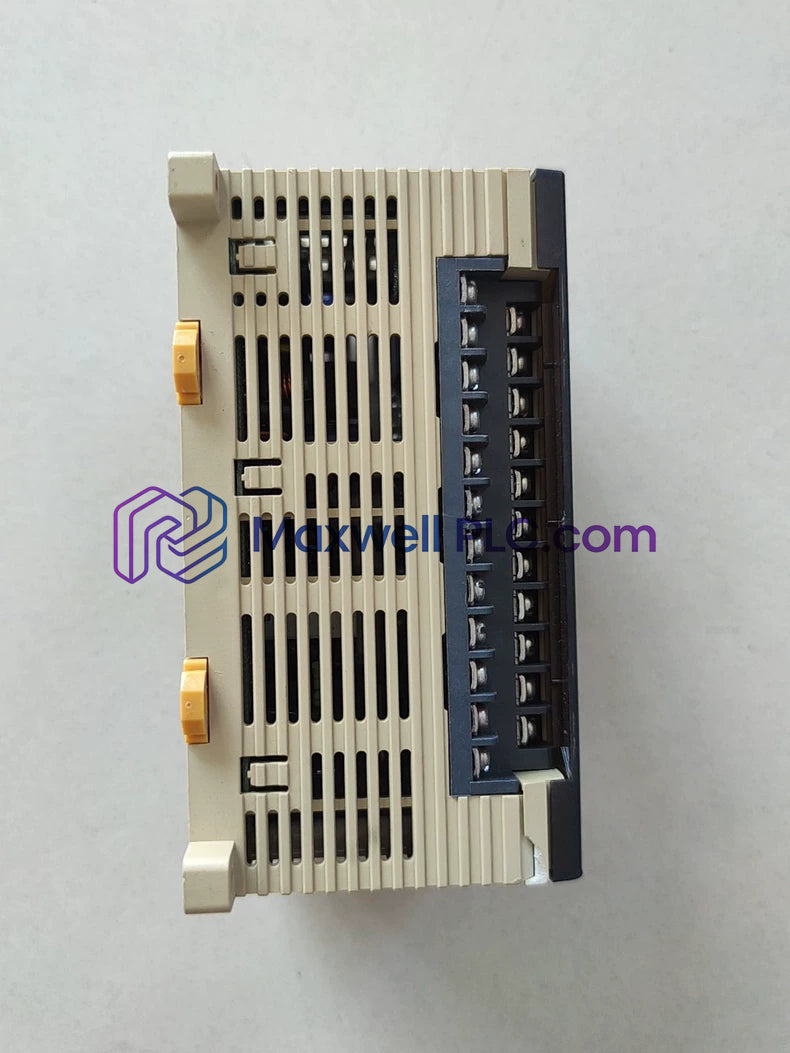

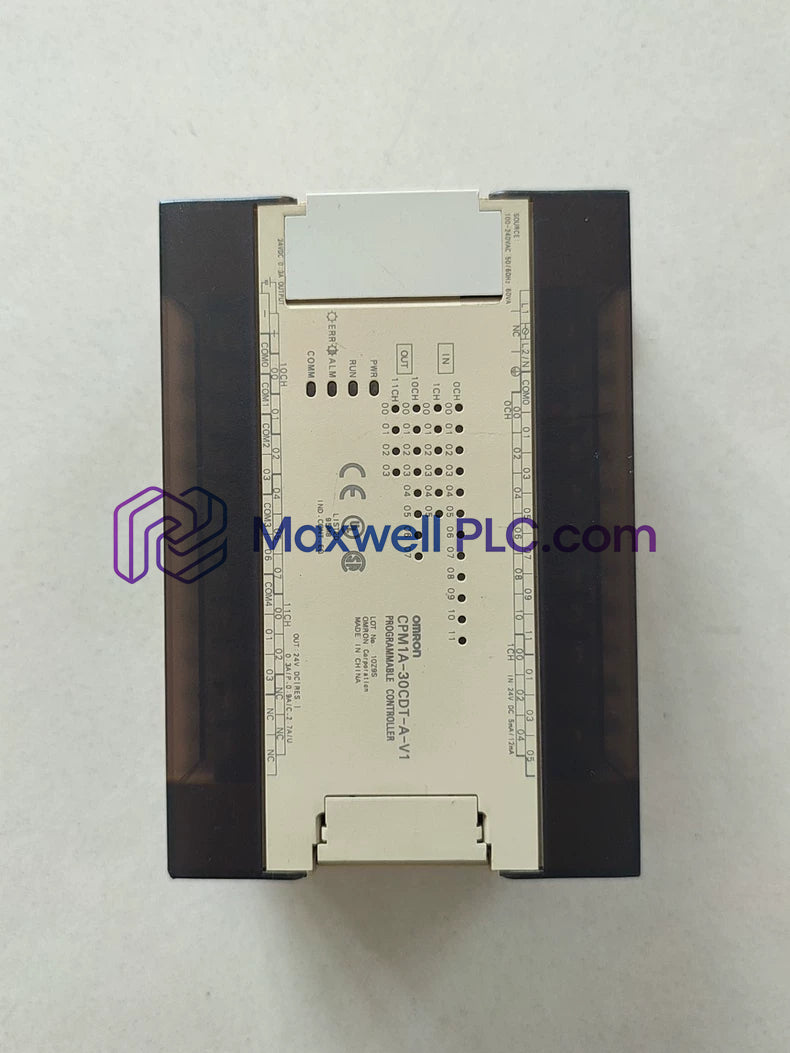

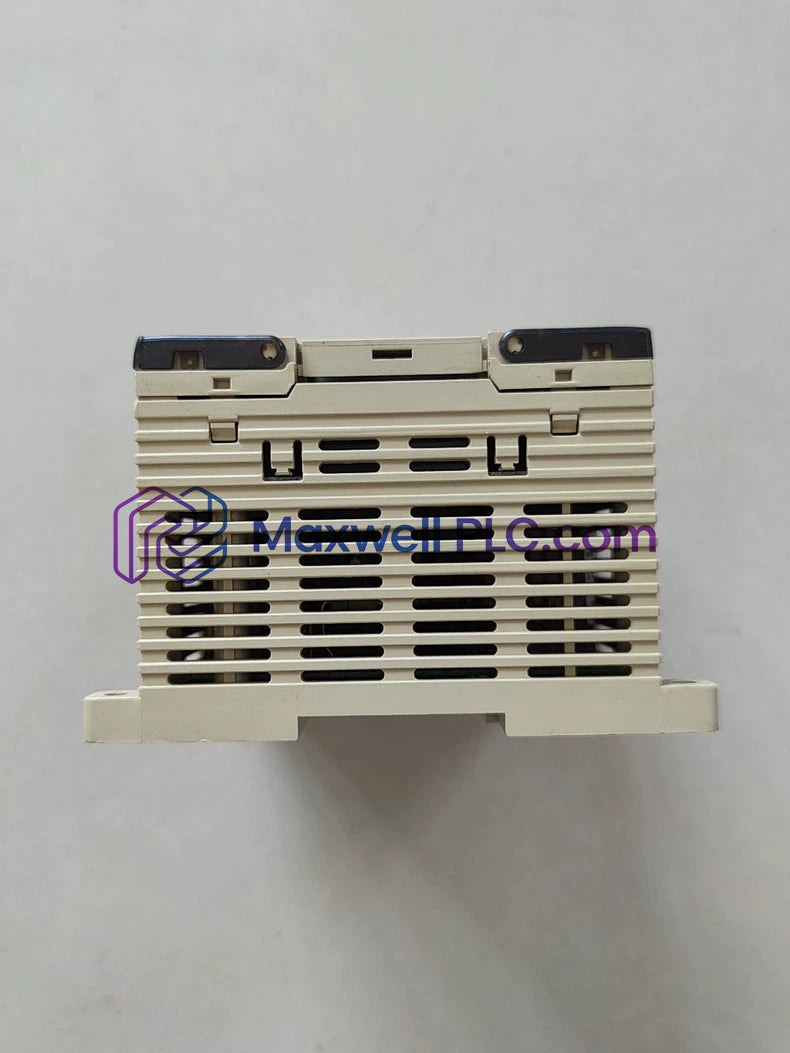

The Omron CPM1A-30CDT-A-V1, also cataloged as the CPM1A Programmable Controller, operates as a dedicated hardware component for direct digital signal processing and high-speed pulse output execution within localized automated machinery loops.

Model Suffix & Configuration Structure

• CPM1A: Compact micro PLC processor base unit chassis.
• 30: Total integrated digital I/O channel count (18 inputs and 12 outputs).
• C: CPU unit with built-in power supply and input/output terminals.
• D: Direct current (DC) input logic circuit configuration.
• T: Transistor output stage (sink type).
• A: Alternating current (AC) operating supply voltage (85 to 264 VAC).
• V1: Version 1 enhanced processing core with expanded instruction support.

System Specifications & Physical Attributes

Backplane Bus Architecture & I/O Density Scaling

The CPU board manages local expansion bus communication velocity to maintain deterministic execution across connected expansion I/O blocks. System I/O density scaling allows up to three CPM1A expansion units to interface directly via a dedicated side expansion bus ribbon connector without auxiliary power units. Firmware flash compatibility ensures synchronized ladder instruction execution and non-volatile retentive memory storage across system power cycles.

Package & Shipping Contents

• 1 x Omron CPM1A-30CDT-A-V1 Programmable Controller Base Unit
• 1 x Integral Screw Terminal Block Protective Cover
• 1 x Hardware Installation Reference Sheet

Field Cabinet Installation & Wiring Protocol

• DIN Rail Mounting: Snap the CPU base unit onto a rigid 35 mm DIN rail (TH35-7.5) and lock both side stopper clips to prevent lateral movement during operational vibration.
• AC Supply Connection: Wire the main power input to the dedicated AC line terminals (85 to 264 VAC) using AWG 16 to AWG 14 stranded copper wires.
• Signal Cable Separation: Route low-voltage sensor input wiring and high-speed encoder lines in separate wireways away from heavy AC power motor lines.
• System Earthing: Connect the functional ground terminal to a local earth ground bar using a minimum 2.0 mm2 conductor to prevent electrostatic noise interference.

Hardware Technical FAQ

• What is the output driving architecture of the transistor outputs? The unit utilizes NPN transistor sink-type outputs, switching the negative side of the load power supply to ground when actuated.
• How many total expansion modules can be connected to this CPU? The CPU backplane interface supports a maximum of 3 expansion I/O or analog units attached sequentially to the right side connector.
• What frequency limit applies to the built-in high-speed counter input? The dedicated encoder input channel processes high-speed pulse trains at input frequencies up to 5 kHz for precise positioning feedback.
• What is the response time for logic instruction execution? Basic instructions execute within a cycle window ranging from 0.72 us to 1.72 us depending on program sequence complexing.
• Can the CPU retain user programs during an extended main AC power outage? Yes, program memory and retentive data registers are preserved in non-volatile flash memory without requiring external battery power.
• What is the allowable input voltage window for the integrated power supply? The internal power transformer accepts a wide operational supply range from 85 VAC to 264 VAC at 50/60 Hz line frequency.
• Is hot-swapping supported for attached expansion I/O modules? No, all power supplies must be disconnected prior to removing or attaching expansion units to prevent electrical damage to the backplane.
• What wire conductor size is recommended for the screw terminals? Use M3 crimp terminal lugs fitted with AWG 22 to AWG 14 copper conductors rated for at least 60 deg C operational environments.
