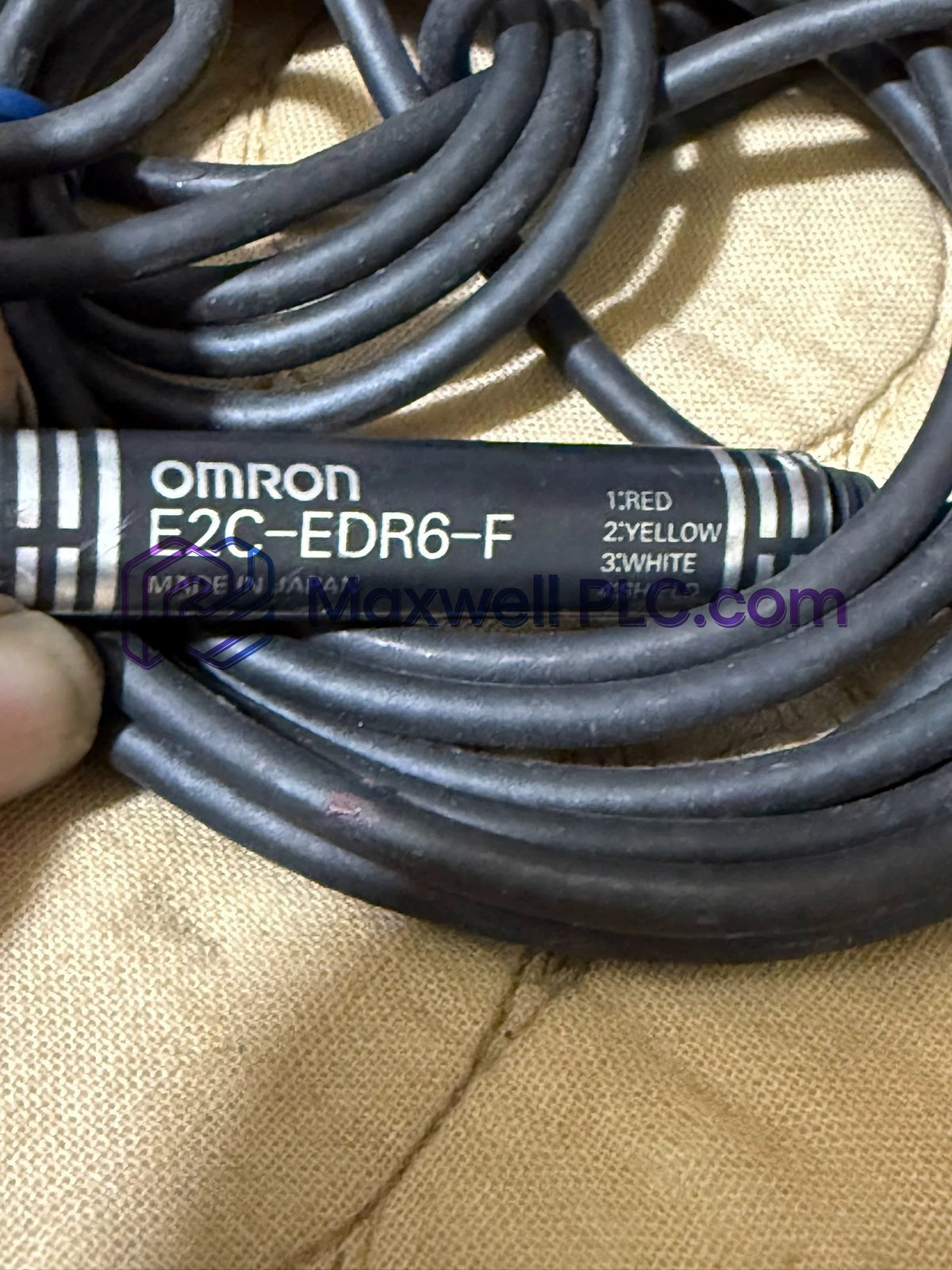

The Omron E2C-EDR6-F, also cataloged as the E2C-EDA High Precision Positioning Inductive Proximity Sensor, operates as a dedicated hardware component for micrometer-level metallic target displacement sensing within automated positioning systems. It delivers high repeatability down to 1 um over a 0.6 mm sensing distance, transmitting high-frequency inductive target response signals directly to compatible E2C-EDA series amplifier units.

Part Number Code and Construction Breakdown

• E2C: Separate amplifier inductive proximity sensor series architecture
• ED: High-precision cylindrical sensor head family
• R6: Nominal sensing distance designation (0.6 mm)
• F: Flexible cable specification / robot cable configuration
• Head Dimensions: 3 mm diameter x 18 mm length ultra-compact housing

Technical Specification Matrix

PLC Input Synchronization and EtherCAT Bus Latency Optimization

When connected to an E2C-EDA amplifier, the sensor head feeds discrete high-speed positioning triggers into downstream PLC architectures. High-frequency oscillator stability prevents signal jitter, ensuring predictable edge-capture times across deterministic networks such as EtherCAT and EtherNet/IP. The fast switching response eliminates signal delays during rapid target pass-by cycles, aligning discrete I/O density scaling directly with PLC scan time limitations.

Deliverables and Accessory Package

• 1 x Omron E2C-EDR6-F sensor head unit with pre-wired cable
• 1 x Mounting nut and washer set for 3 mm cylindrical head fixation
• 1 x Technical instruction sheet

Field Installation and Wiring Instructions

Mechanical Mounting and Clearance Standards

• Secure the 3 mm smooth cylindrical head using dedicated mounting clamps without applying excess compressive torque.
• Maintain a clear zone around the sensing face to prevent surrounding metallic structures from causing inductive offset errors.

Electrical Connections and Noise Shielding

• Connect the sensor head cable directly to the designated E2C-EDA amplifier input terminal without splicing.
• Route sensor head wiring separately from high-voltage AC lines and motor variable frequency drive cables to suppress EMI.

Technical Questions & Answers

• What primary target material is required for achieving the specified 0.6 mm detection distance?

  The sensor is calibrated for magnetic metals using a standard iron (S50C) target measuring 5 x 5 x 3 mm.

• Can the sensor head be wired directly to standard PLC digital input cards?

  No, the sensor head must be connected to a dedicated E2C-EDA amplifier unit which processes the analog inductive signal.

• What is the maximum repeat accuracy capability of this sensor head model?

  The sensor achieves a repeat accuracy within 1 um under stabilized operating temperature conditions.

• How is hysteresis managed during high-precision target alignment?

  Hysteresis distance is adjustable directly on the main E2C-EDA amplifier unit to match operational tolerance targets.

• Does the flexible robot cable permit continuous bending applications?

  Yes, the "F" suffix designates a flexible cable designed to withstand robotic arm and moving stage cable carrier flexing.

• What insulation resistance parameter applies to the sensor head assembly?

  The internal circuit insulation resistance is rated at 50 MOhm minimum measured at 500 VDC.

• How does current consumption compare during un-actuated state operations?

  Current draw remains low at 10 mA maximum through the dedicated amplifier interface during standard operation.

• Are special precautions required when mounting multiple heads side by side?

  Maintain recommended mutual interference separation distances or select alternate frequency channels on amplifiers to prevent cross-talk.
