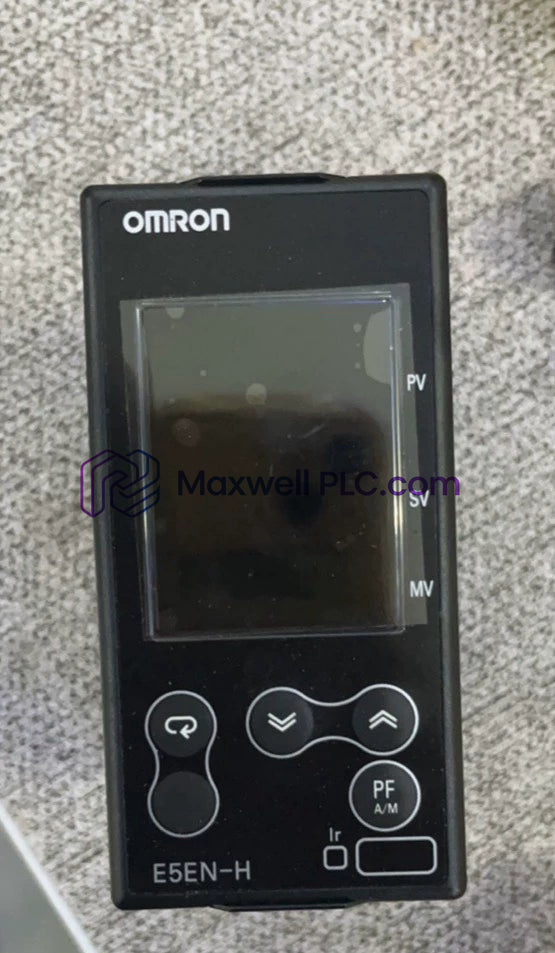

The Omron E5EN-HPRR2BM-500, also cataloged as the E5EN-H Advanced Digital Temperature Controller, operates as a dedicated hardware component for position-proportional process regulation within closed-loop thermal control networks. It accepts sensor input signals, executes control algorithms, and provides direct physical switching outputs to drive control valves and heating elements.

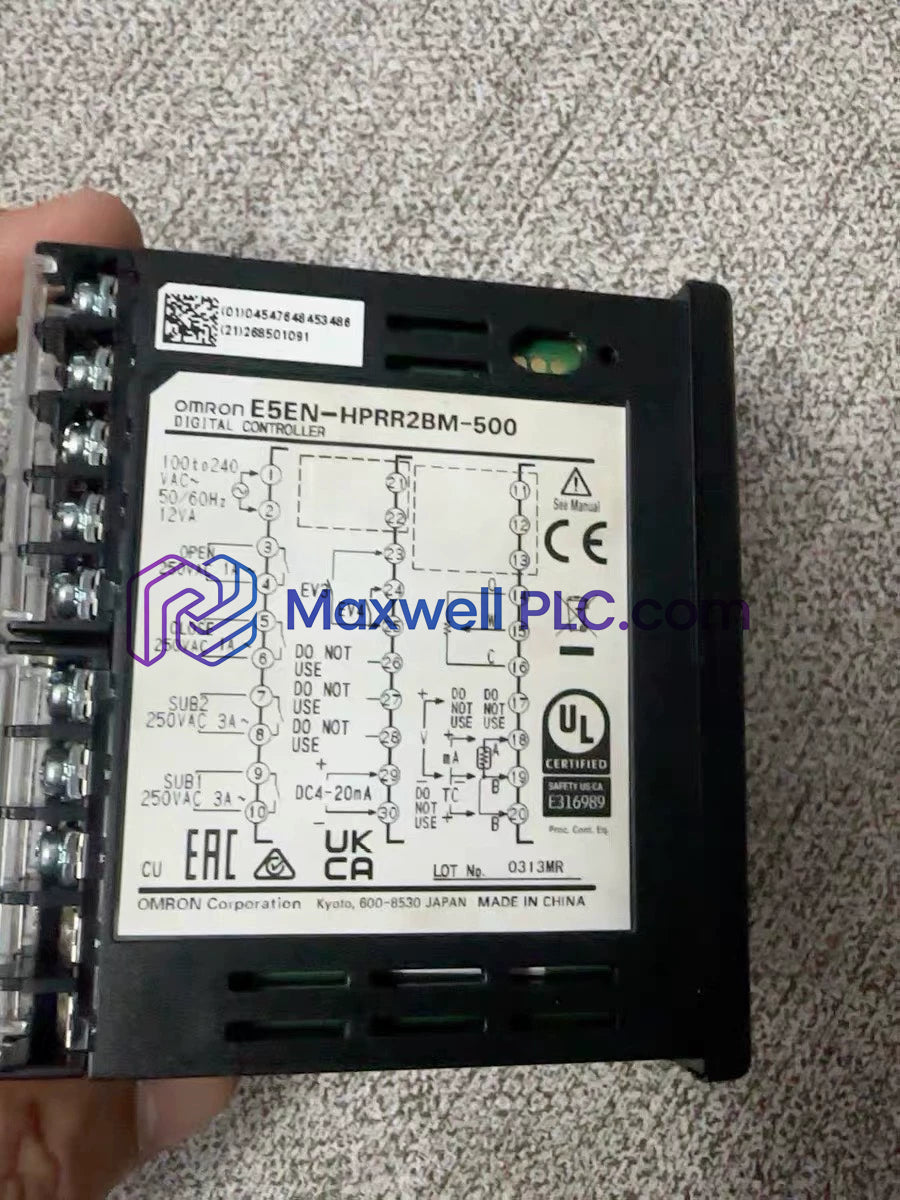

Catalog Code Architecture

• E5EN: 1/8 DIN panel-mount controller housing dimensions (96 mm x 48 mm front profile).
• H: High-performance advanced control feature set.
• P: Position-proportional control execution for motorized valve drives.
• R: Control Output 1 - Relay output switching interface.
• R: Control Output 2 - Relay output switching interface.
• 2: Auxiliary Outputs - Two distinct relay alarm/event contacts.
• B: Option 2 - Two digital event inputs integrated.
• M: Option 3 - Option unit mounting interface available.
• Blank: Power supply rating of 100 to 240 VAC at 50/60 Hz.
• 500: Factory-installed rear terminal safety cover included.

Technical Performance Matrix

Industrial Network Integration & Firmware Architecture

The internal microcontroller maintains deterministic cycle execution for position-proportional valve control loops. Integrated flash memory preserves configuration parameters and setpoint profiles without battery backup. Direct integration with industrial PLCs or supervisory controllers via option cards allows rapid status data transmission over fieldbus lines. Internal signal buses enforce strict channel isolation between measurement circuits and output drive relays to protect against transient voltage surges in noisy industrial environments.

Package Inspection & Delivered Items

• 1 x Omron E5EN-HPRR2BM-500 Temperature Controller
• 1 x Terminal Cover (Model -500 attached to rear frame)
• 2 x Panel Mounting Adapters
• 1 x Instruction Manual sheet

Panel Installation & Field Wiring Protocol

• Panel Cutout Assembly: Prepare a standard 1/8 DIN panel cutout (92 mm x 45 mm). Insert the unit through the front panel opening and secure it using the provided side mounting brackets.
• Sealing Protection: Ensure the front rubber packing gasket rests flat against the panel surface to achieve IP66 ingress protection rating against liquids and dust.
• Wiring Conductor Routing: Route AC power wiring separately from low-voltage thermocouple/RTD input leads and digital event signal cables to eliminate inductive noise coupling.
• Grounding Practices: Connect all shield lines of sensor cables to a single-point earth ground terminal at the control cabinet end only.

Technical Operations FAQ

• How does position-proportional control operate on this controller model?

  Position-proportional control uses dual relay outputs (open and close) to directly adjust motorized control valves based on valve position feedback or estimated travel timing.

• What memory retention mechanism protects parameter configurations during power loss?

  Configuration parameters are stored in non-volatile EEPROM memory rated for 1,000,000 write cycles, requiring no battery backup power for long-term retention.

• What happens if the line voltage drops below the operating threshold?

  If operating voltage falls below 85% of the 100 to 240 VAC rating, internal power monitors force the controller into a reset state to prevent erratic output execution.

• Can option units be added to the unit after initial installation?

  Yes, the designation "M" indicates that an option unit (such as RS-485 communications or transfer output cards) can be mounted into the internal expansion slot.

• What function do the two event inputs provide?

  The event inputs accept external voltage-free contact closures to trigger pre-configured actions such as switching target setpoints, starting/stopping control, or resetting alarms.

• How are the rear terminals protected from accidental contact?

  The "-500" suffix model includes a factory-installed snap-on terminal cover that provides IP20 equivalent finger protection across the rear screw connections.

• What is the environmental rating of the controller housing when panel-mounted?

  The front panel meets NEMA 4X / IP66 liquid and dust tight standards when correctly flush-mounted, while the rear case and terminals rate at IP20 and IP00 respectively.

• Does the primary power circuit support direct DC input voltage?

  No, the standard model without "D" in the part number operates exclusively on 100 to 240 VAC power; DC operation requires a dedicated 24 VAC/VDC power variant.
