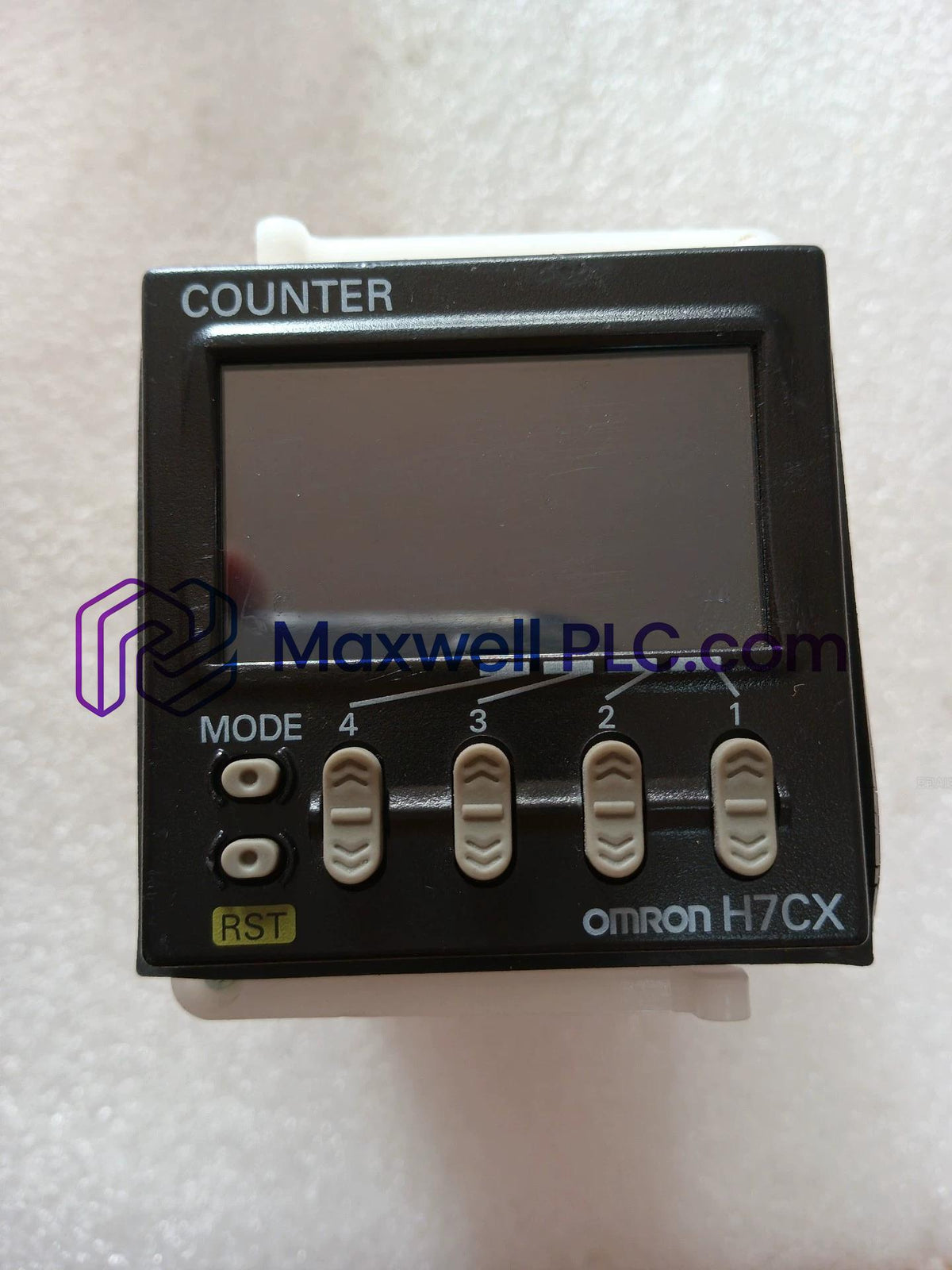

The Omron H7CX-A4SD-N, also cataloged as the H7CX-A4SD Multifunction Counter/Tachometer, operates as a dedicated hardware component for high-speed pulse count processing and solid-state switching execution within H7CX Series control loops.

Part Number Structure & Functional Nomenclature

• H7CX: Omron DIN 48 x 48 mm panel-mount digital counter and tachometer series designation.
• A: Standard functional unit configuration.
• 4: 4-digit negative transmissive LCD display module (-999 to 9999 display range).
• S: Transistor solid-state switching output profile.
• D: Low-voltage DC operational supply rating (12 to 24 VDC).
• N: Updated hardware architectural revision featuring enhanced display contrast and depth profile.
• Screw Terminals (None): Direct rear-panel screw terminal wiring block connection interface.
• 1-Stage Setting (None): Single-stage threshold preset evaluation configuration.

Technical & Environmental Parameters

Firmware Flash Compatibility & Deterministic Input Sampling

The digital processing module utilizes high-speed internal sampling hardware to capture input frequencies up to 10 kHz without missing pulse counts. Embedded firmware flash architecture maintains constant register timing to execute logic evaluation between measured count totals and programmed setpoints. Onboard non-volatile EEPROM memory safeguards counter registers and system parameters during power removal without requiring external battery backup. System boot verification routines check parameter flash sector checksums prior to enabling transistor outputs to prevent erratic switching during low-voltage transients.

Standard Shipping Deliverables

• 1 x Omron H7CX-A4SD-N Multifunction Counter Unit
• 1 x Panel Mounting Adapter Ring
• 1 x Waterproof Rubber Sealing Gasket

Field Wiring Methods & Panel Mounting Directives

Enclosure Door Cutout Assembly

• Cut a 45 mm x 45 mm square opening in the enclosure door; fit the rubber gasket around the outer bezel to maintain IP66 front-face ingress protection.
• Slide the counter body into the cutout from the front and push the rear mounting adapter forward until the locking ratchets seat firmly against the panel wall.

Electrical Wiring & Noise Suppression

• Connect 12 to 24 VDC power lines to the designated rear screw terminals using insulated fork or ring crimps; tighten terminal screws to 0.5 N-m.
• Use shielded twisted-pair cables for high-frequency pulse inputs, keeping signal lines routed away from AC power lines and drive outputs to prevent noise interference.

Frequently Asked Questions

• What supply voltage limits apply to the D configuration suffix?

  The unit operates exclusively on 12 to 24 VDC control power and cannot be powered directly from AC mains.

• How does the solid-state transistor output handle load switching?

  The transistor output handles up to 30 VDC at 100 mA, making it ideal for high-speed switching to PLC inputs or DC relays.

• How are configuration settings protected during an unexpected power drop?

  Internal EEPROM flash memory automatically retains configuration settings, prescaling values, and current counts indefinitely without a battery.

• What maximum display value is supported on the 4-digit screen?

  The 4-digit display supports values from -999 to 9999, with configurable decimal point positions for scaled process variables.

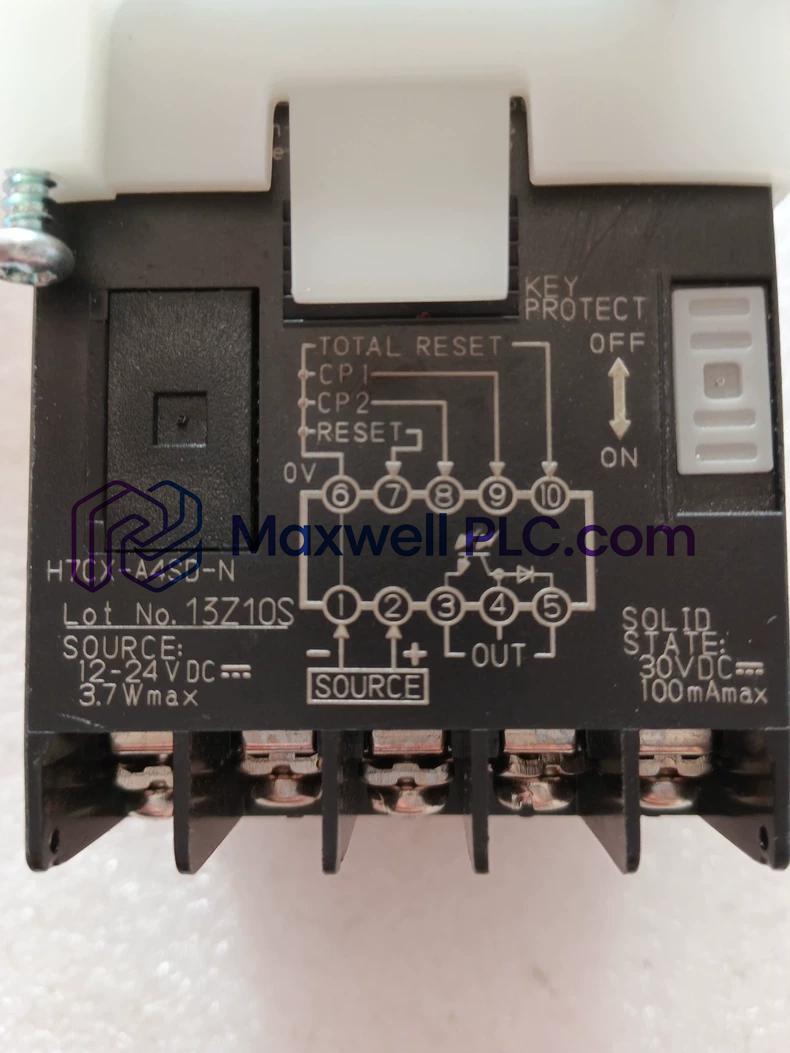

• What terminal style is used on the back of the H7CX-A4SD-N?

  The unit features integrated rear screw terminals that accept standard M3.5 crimp connectors directly without an external socket base.

• How is front panel protection maintained in dusty or wet environments?

  Installing the unit with the included rubber packing gasket provides IP66 protection against dust ingress and low-pressure water jets.

• Can this unit be configured for tachometer rate measurement modes?

  Yes, internal parameters allow selection between preset counter, totalizing counter, and tachometer frequency modes.

• Does the transistor output support both NPN and PNP sensor wiring?

  Yes, the input logic is switchable between NPN and PNP modes via internal DIP switches or menu parameters.
