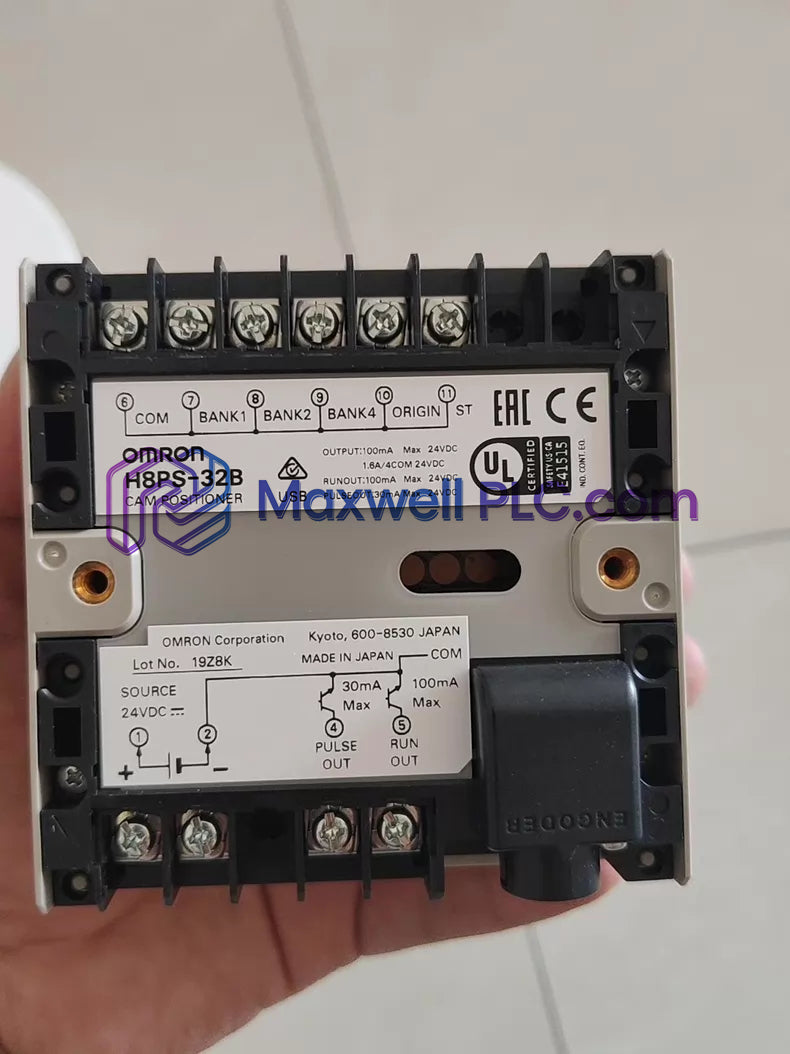

The Omron H8PS-32B serves as the primary H8PS Cam Positioner utilized to execute absolute rotary encoder signal evaluation and output switching across high-density motion control platforms.

Model Number Structure

• H8PS: Series identifier for panel-mounted electronic cam positioner units.
• 32: Designates 32-channel discrete NPN transistor output capacity.
• B: Denotes panel-mount construction with 1/4 DIN outer dimensions (96 x 96 mm) and integrated backlit LCD display.

Physical and Electrical Specifications

Industrial Motion Bus Processing and Logic Scaling

Internal signal execution circuits handle high-speed angle decoding from connected absolute encoders to manage elevated I/O density scaling across complex multi-axis automation cells. Digital comparator logic compares encoder positioning against pre-set angular limits, maintaining backplane bus communication velocity Licences and ensuring persistent firmware flash compatibility for stored program parameters during power interruptions.

Package Component List

• 1 x Omron H8PS-32B Cam Positioner Assembly
• 1 x Panel Mounting Adapter Clamp
• 1 x Protective Terminal Guard
• 1 x Panel Waterproof Rubber Gasket

Field Installation Protocols

Panel Cutout Preparation

Cut a standard 1/4 DIN (92 x 92 mm) square cutout on the control cabinet door. Mount the unit through the front cutout with the waterproof rubber gasket fitted between the bezel and panel door to maintain front sealing.

Encoder Direction Configuration

Locate the onboard DIP switches on the housing. Set the designated switch to forward (CW) or reverse (CCW) phase decoding to match the physical rotation direction of the connected absolute encoder.

Terminal Wiring and Output Grounding

Connect the 20.4-26.4 VAC supply conductors to the AC power terminals. Wire the 32 discrete NPN open-collector outputs to PLC inputs or relay modules, ensuring proper functional earth (FG) grounding for shield drain wires to prevent noise coupling.

Technical FAQ

• How is encoder direction inversion executed on the hardware level?

  An internal DIP switch changes logic decoding phases between Clockwise (CW) and Counter-Clockwise (CCW) without physically swapping input signal leads.

• What internal protection preserves program data when power is lost?

  EEPROM non-volatile memory stores all 32-channel ON/OFF angle settings permanently without reliance on an internal backup battery.

• What occurs if the absolute encoder signal cable is severed?

  The positioner logic detects loss of encoder pulses, immediately disables all 32 NPN transistor outputs, and displays an encoder alarm code on the LCD.

• Can the 32 NPN transistor outputs be wired directly to inductive loads?

  Outputs require external flyback diode protection when switching inductive loads like relay coils to prevent voltage transients from damaging output transistors.

• Is hot-swapping the encoder terminal block permitted during operation?

  Unplugging or plugging the encoder interface while AC power is applied risks damaging internal logic circuitry and causing output state glitches.

• What grounding practice prevents signal corruption on the encoder line?

  Connect the encoder cable shield to the dedicated Functional Ground (FG) terminal on the positioner end only to avoid ground loop currents.

• What clearance is necessary around the panel housing for thermal safety?

  Leave at least 30 mm clear space above and below the rear enclosure inside the cabinet to permit heat dissipation from internal power components.

• What voltage range is acceptable on the AC power terminals?

  The power circuit operates between 20.4 and 26.4 VAC; supplying voltage outside this tolerance can cause system fault trips or hardware failure.
