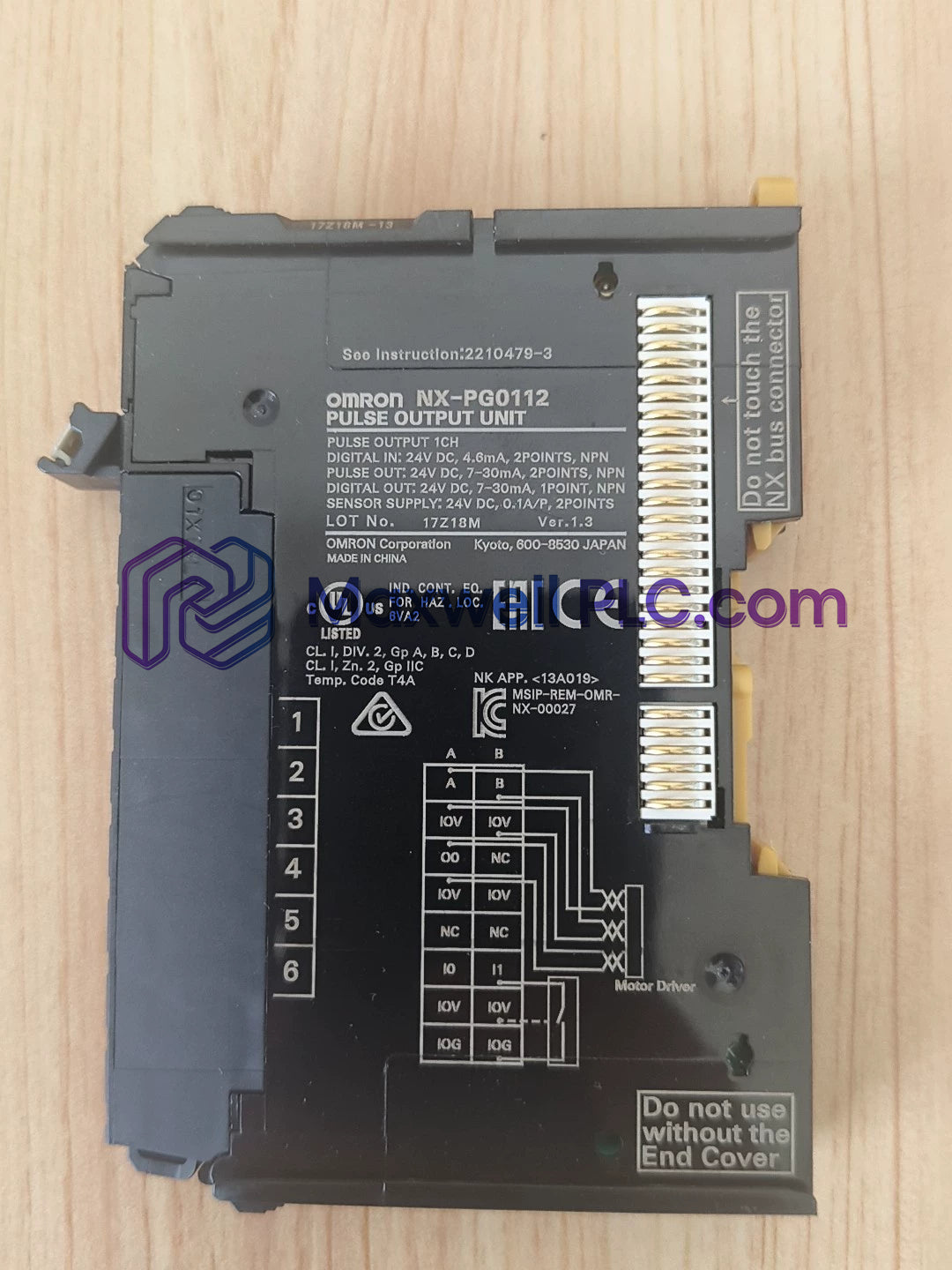

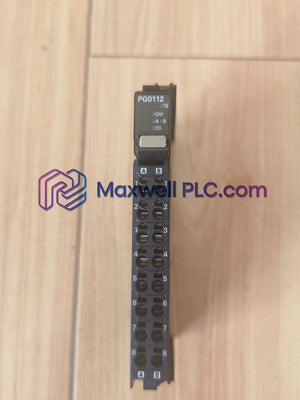

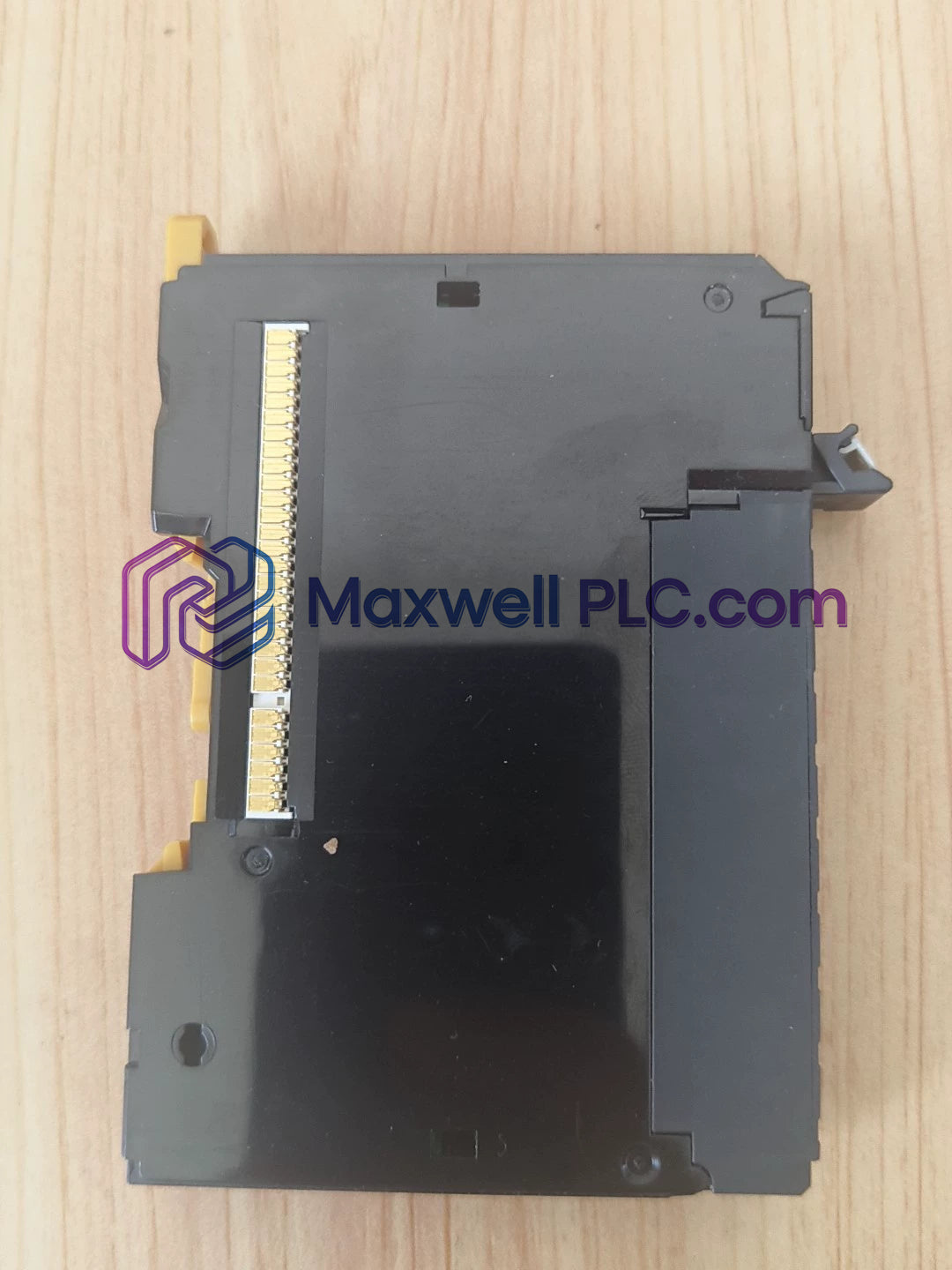

The Omron NX-PG0112, also cataloged as the NX-PG0112 Pulse Output Unit, operates as a dedicated hardware component for pulse train motion control execution within EtherCAT and NX bus systems.

Model Identification & Function Breakdown

• PG0: Pulse output unit hardware classification
• 1: 1-channel motion control architecture
• 1: Open collector NPN transistor circuit specification
• 2: Synchronous I/O refreshing support function

Core Hardware Specifications

Deterministic Network Bus Architecture

The unit executes synchronous I/O refreshing over the high-speed NX bus architecture, maintaining tight cycle time alignment with the primary motion controller. Firmware flash compatibility across system revisions enables low-jitter pulse train generation without disrupting background backplane communication velocity. High-density I/O density scaling allows precise positioning pulses to be emitted to external servo or stepper drives simultaneously across distributed rack topologies.

Shipping Package Content

• 1 x NX-PG0112 Pulse Output Unit Assembly
• 1 x 16-Pin Screwless Clamping Terminal Block
• 1 x Terminal Block Mounting Guide Sheet

Field Deployment & Wiring Recommendations

Mechanical Assembly

• Snap the module firmly onto a standard 35 mm DIN rail until the locking tab engages fully.
• Maintain a minimum 30 mm vertical clearance above and below the housing for natural convective cooling.

Wiring Directives

• Insert field leads into the screwless push-in terminals using conductors stripped to the recommended length.
• Limit pulse output signal cable runs to a maximum distance of 3 m using shielded twisted-pair cabling to minimize signal distortion.

Technical Inquiry Resolutions

• What pulse output modes are selectable on the module?

  The unit supports forward/reverse pulse direction outputs or pulse plus direction output modes configured via controller software.

• What drive types can be controlled by this unit?

  It directly drives servo amplifiers or stepper motor controllers equipped with open-collector pulse string input interfaces.

• How is I/O refreshing synchronized across the backplane?

  The hardware operates using synchronous I/O refreshing or task period prioritized refreshing aligned with the controller cycle.

• What is the maximum output pulse rate supported?

  The open collector NPN transistor output stage generates high-speed pulse strings up to a maximum of 500 kpps.

• How many physical I/O terminals are available on the connector?

  The detachable screwless terminal block provides 16 individual connection points for field signal interface wiring.

• What is the current drain from the I/O power supply?

  The internal electronics draw a maximum current of 20 mA from the connected field I/O power supply line.

• Are external inputs available on the module assembly?

  The unit incorporates 2 dedicated digital external inputs alongside 3 transistor pulse output circuits.

• Does the module support hot-swapping under active backplane power?

  Power to the NX bus backplane must be isolated before detaching or inserting the module to avoid circuit damage.
