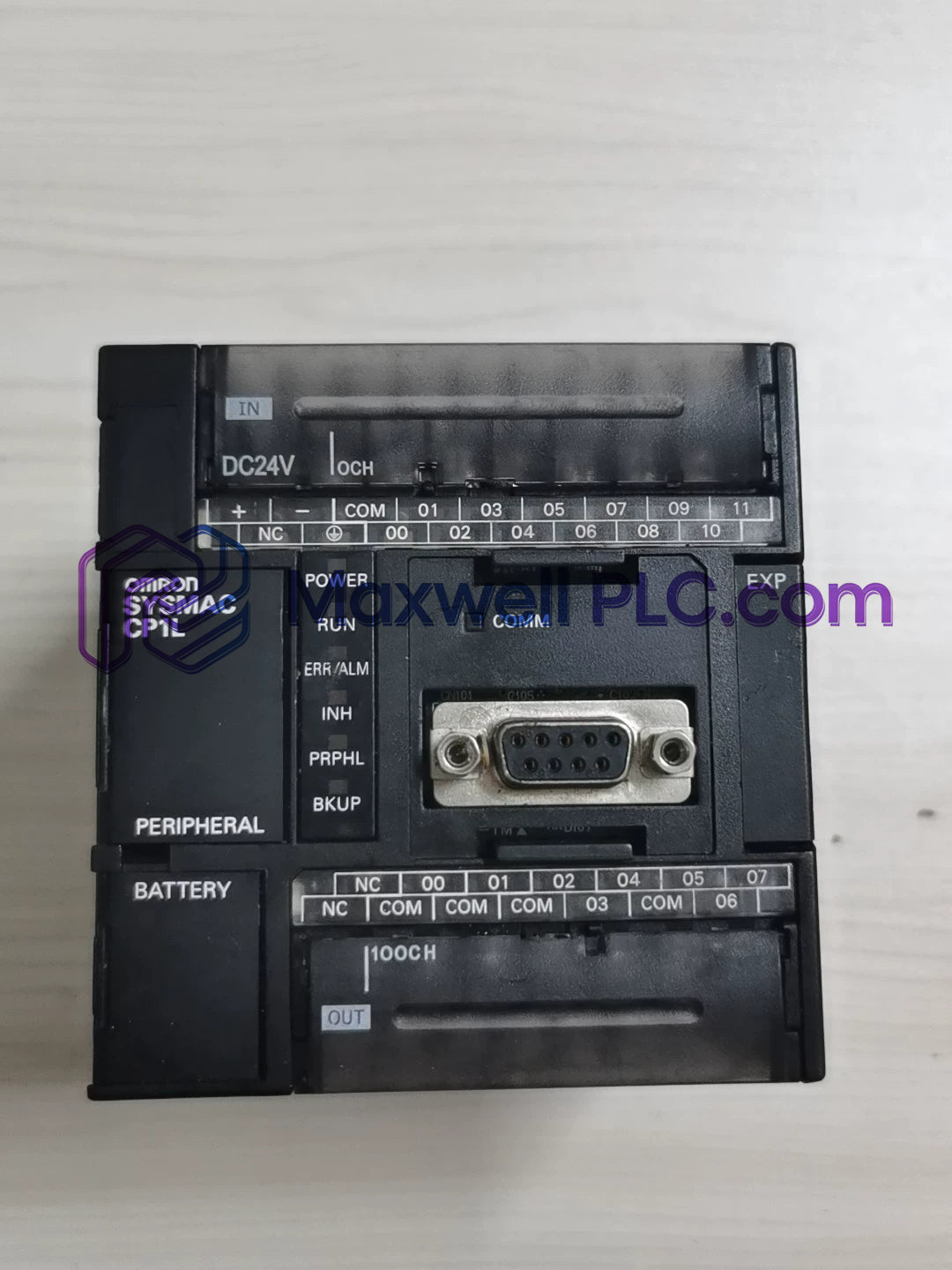

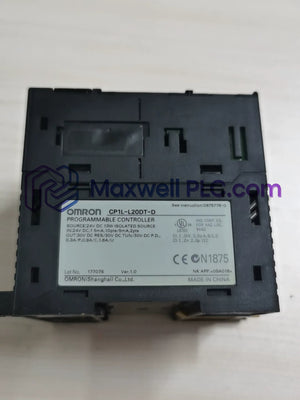

The Omron CP1L-L20DT-D, also cataloged as the CP1L-L20DT-D Programmable Controller, operates as a dedicated hardware component for high-speed motion positioning and discrete logic control within CP1L Series Industrial Automation platforms. The base CPU unit processes 12 discrete 24 VDC inputs and drives 8 NPN sinking transistor outputs, managing integrated high-speed counter inputs and pulse output trains for precise servo and stepper drive integration.

Technical Identifier Matrix

Hardware Specifications

I/O Density Scaling and Backplane Bus Velocity

The Omron CP1L-L20DT-D incorporates a high-speed logic engine with optimized backplane bus velocity, facilitating high-frequency input sampling and fast interrupt responses. Internal signal paths route 4 hardware counter channels operating up to 100 kHz directly to the central processing pipeline, preventing CPU execution delay. I/O density scaling allows appending CP1W expansion modules to scale discrete points and analog loops without introducing communication cycle jitter or altering high-speed pulse train accuracy.

Package Contents & Ordering Information

• 1x Omron CP1L-L20DT-D Base CPU Unit
• 1x Removable Screw Terminal Cover Assembly
• 1x Hardware Installation Sheet

Field Installation Guidelines

• Mechanical Installation: Snap unit onto 35 mm DIN rail or surface-mount using M4 screws. Maintain a minimum clearance of 50 mm above and below the chassis for thermal ventilation.
• Power Connection: Connect a regulated 24 VDC power supply (20.4 to 26.4 VDC acceptable range) to the main DC power terminals.
• Sinking Transistor Load Connections: Wire external DC loads between the positive DC rail and output terminals. Connect output commons to the negative side of the DC power source.
• Grounding Protocols: Wire the functional earth ground terminal to panel earth using dedicated wire with a minimum cross-section of 2.0 mm sq.
• Shielding Protocols: Ground encoder input cabling and pulse output lines via 360-deg braid shield grounding clamps at the panel ground bar.

Frequently Asked Questions

• Q: What is the main input voltage requirement for the CP1L-L20DT-D?

  A: The unit requires a nominal power supply of 24 VDC, operating within an allowable range of 20.4 to 26.4 VDC.

• Q: What are the integrated high-speed pulse capabilities of this controller?

  A: The CPU features 4 high-speed counter inputs rated up to 100 kHz and 2 pulse output channels rated up to 100 kHz.

• Q: What is the output configuration and current handling rating?

  A: Outputs are NPN sinking transistors rated for 4.5 to 30 VDC operating range at 0.3 A maximum per output point.

• Q: How many total discrete I/O channels are built into the main unit?

  A: The base unit includes 20 discrete points divided into 12 24 VDC inputs and 8 NPN transistor outputs.

• Q: Can the CP1L-L20DT-D accept expansion units for additional I/O?

  A: Yes, the CPU supports connection of CP1W series expansion modules to scale discrete and analog channel counts.

• Q: What programming interface port is standard on the CPU panel?

  A: A built-in USB 2.0 B-type female port is provided for connection to programming software and ladder upload/download.

• Q: What are the program and data memory storage limits?

  A: Non-volatile user memory provides storage for up to 5k steps of execution program logic and 10k words of data memory.

• Q: How should external DC inductive loads be suppressed to protect NPN outputs?

  A: External flywheel diodes must be wired in parallel across DC inductive loads to suppress back-EMF voltage spikes.
