The Omron CP1L-M30DT1-D, also cataloged as the CP1L-M30DT1-D Programmable Controller, operates as a dedicated hardware component for localized logic execution, high-speed pulse positioning, and multi-axis counter integration within Omron CP1L automation architectures.

Technical Identifier Matrix

• Series Prefix (CP1L): Compact programmable controller platform with ladder logic processing
• CPU Type (M): Standard CPU unit with 30 built-in I/O points and local expansion bus capability
• I/O Capacity (30): 30 total built-in I/O points (18 discrete inputs, 12 discrete outputs)
• Output Type (DT1): Transistor outputs, sourcing topology supporting high-speed pulse train generation
• Power Supply (D): 24 VDC operating power supply input

Hardware Specifications

PLC Determinism and Backplane Bus Velocity

The Omron CP1L-M30DT1-D utilizes a high-performance execution engine designed to maintain deterministic instruction timing across complex sequential program blocks. High-speed sourcing transistor outputs support 2-axis 100 kHz pulse positioning directly linked to internal position registers, while 4-axis 100 kHz high-speed counters process high-frequency encoder feedback without increasing main scan latency.

System I/O capacity scales via the local CP1W expansion port, accepting up to 3 expansion modules. Internal backplane bus velocity ensures deterministic cyclic I/O refresh sequences, transferring state data between external expansion cards, CIO memory locations (CIO 0 to CIO 199), and internal task processing loops without scan jitter.

Package Contents & Ordering Information

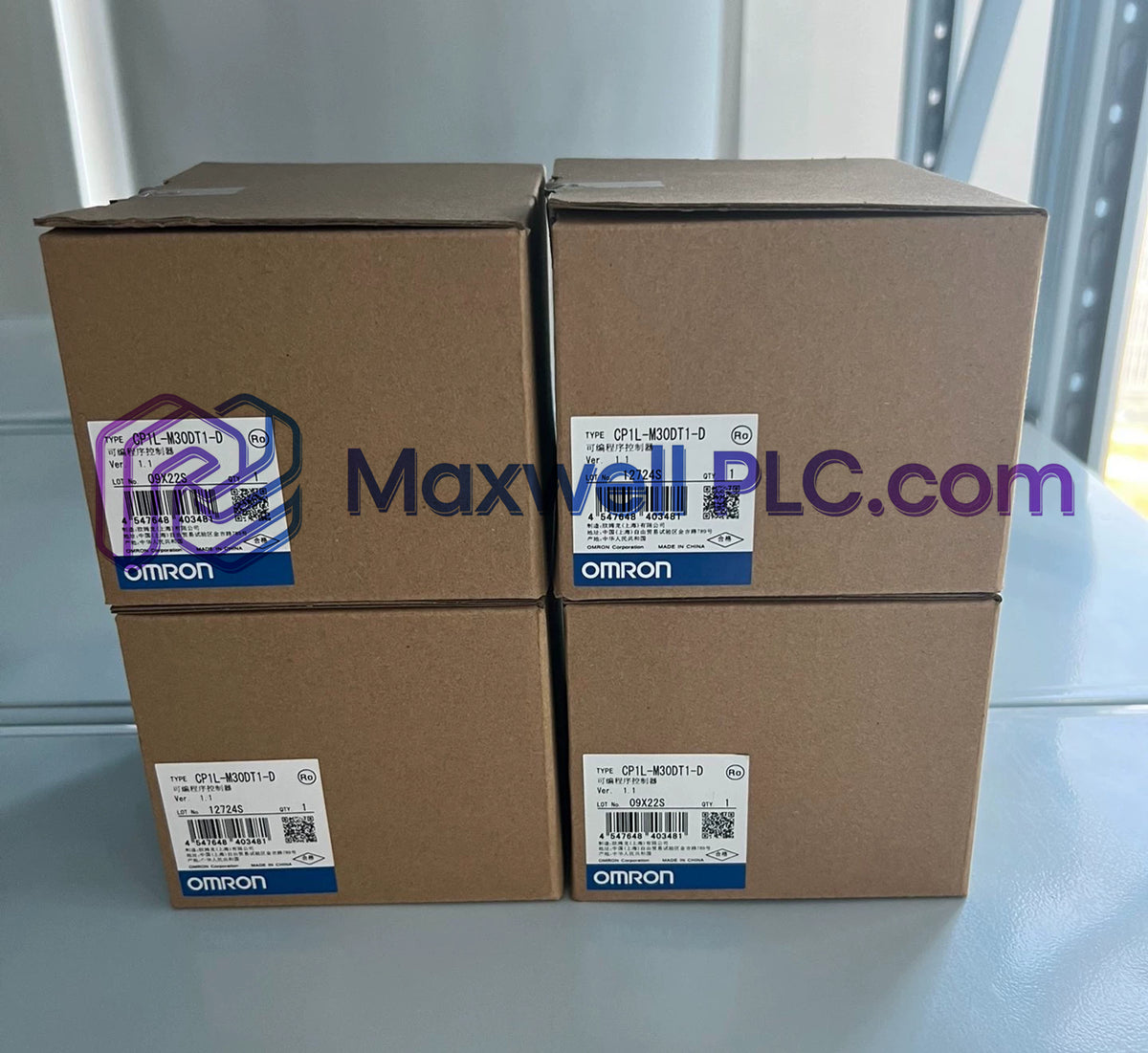

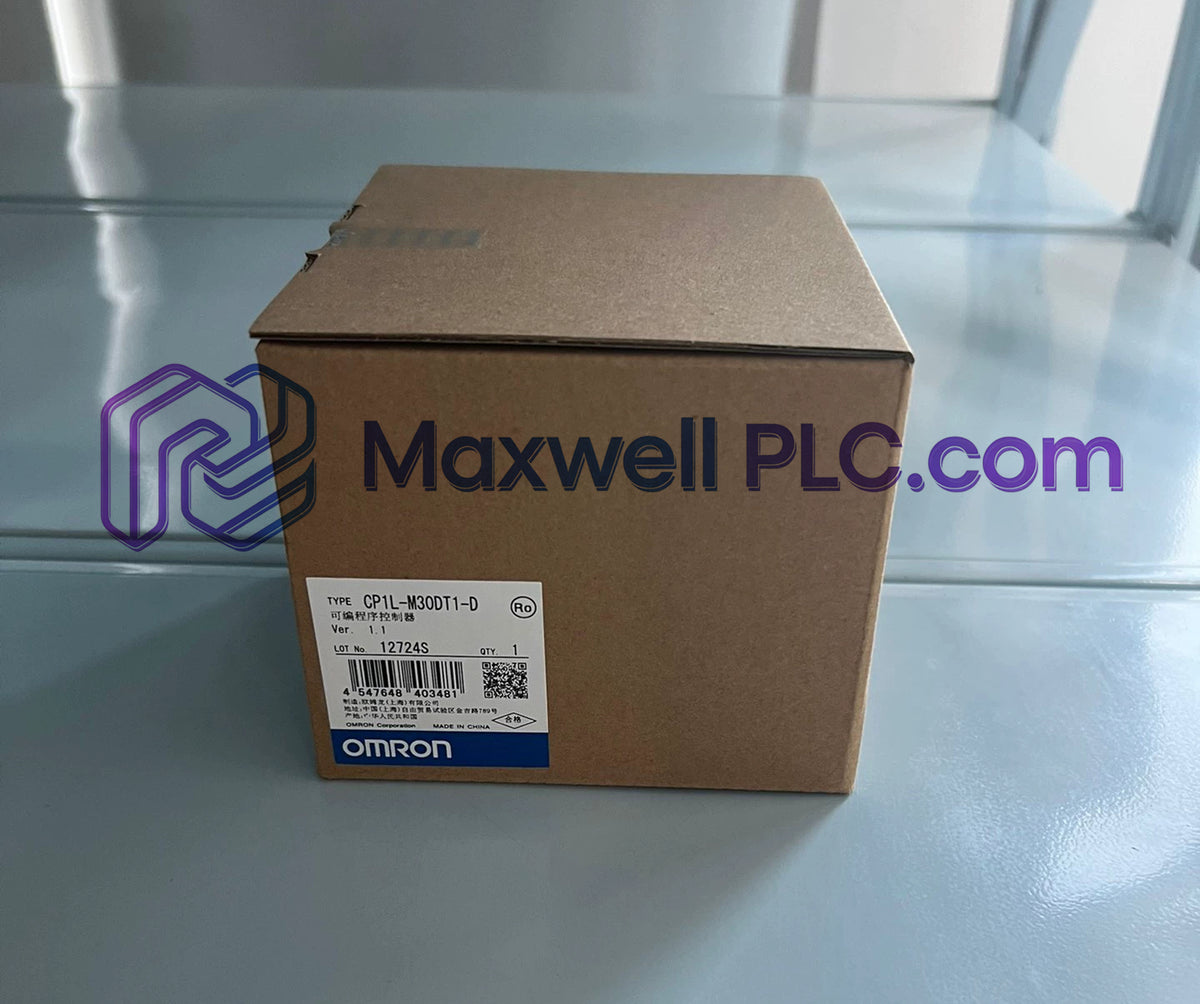

• 1x Omron CP1L-M30DT1-D Programmable Controller Unit
• 1x Removable Screw Terminal Block Assembly
• 1x Hardware Installation Sheet

Field Installation Guidelines

• DIN-Rail Mounting: Secure the base unit onto a 35 mm DIN rail (PFP-50N/PFP-100N). Maintain at least 50 mm clearance above and below the chassis for proper air circulation.
• 24 VDC Power Wiring: Wire 24 VDC external power to the DC input terminals (+ and -). Torque terminal block screws to 0.5 N-m.
• Sourcing Transistor Output Wiring: Connect field load circuits in a sourcing configuration by connecting the load between the controller transistor output terminal and the DC negative supply rail.
• Grounding Setup: Connect the functional ground (FG) terminal directly to an isolated earth ground line using a conductor with an impedance under 100 ohms.
• Shielding Procedures: Terminate high-speed input and pulse output signal cable shields at a single point using 360-deg braid grounding clamps.

Frequently Asked Questions

• What transistor output topology is implemented on the CP1L-M30DT1-D?

  The controller uses sourcing transistor outputs that supply positive DC potential directly to connected field loads.

• What input and output point breakdown is provided on the base chassis?

  The CPU base unit incorporates 18 discrete 24 VDC inputs and 12 sourcing transistor outputs, totaling 30 I/O points.

• What high-speed pulse output capacity is available for motion control?

  The unit incorporates 2 axes of high-speed pulse train outputs operating at frequencies up to 100 kHz.

• What power supply voltage parameters are required for CPU operation?

  The unit operates on an internal 24 VDC supply accepting a voltage input range of 20.4 to 26.4 VDC.

• How many expansion units can be added to the CP1L-M base unit?

  Up to 3 CP1W expansion units or expansion I/O units can be attached via the lateral expansion bus interface.

• What high-speed counting frequency is supported on the input channels?

  The CPU supports 4 axes of high-speed counter inputs with a maximum input frequency of 100 kHz per channel.

• What is the internal 5 VDC bus current consumption for the unit?

  The base CPU draws 0.28 A at 5 VDC from the internal backplane power distribution rail.

• How must signal line shielding be landed on the controller chassis?

  High-speed signal cable shields must be grounded at a single point using a 360-deg braid clamp connected to FG ground.
