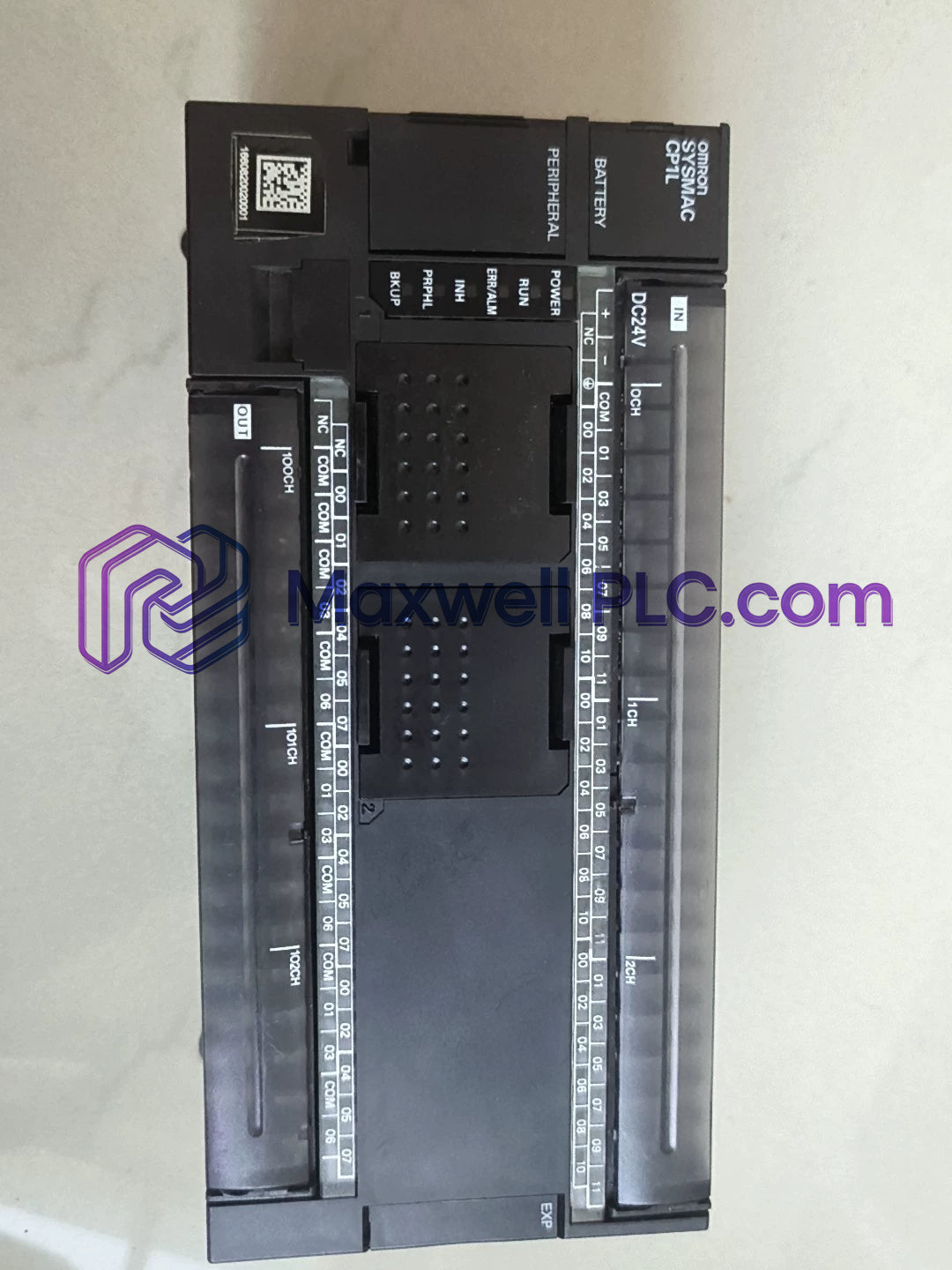

Configured for high-speed discrete positioning and process execution in automated systems, the Omron CP1L-M60DT1-D (CP1L-M60DT1-D Programmable Logic Controller) provides direct physical/electrical execution.

Technical Identifier Matrix

• Base Model: CP1L
• CPU Class: M (60 Built-in I/O Points)
• Input Configuration: 36 DC Inputs (24 VDC)
• Output Configuration: 24 Sourcing Transistor Outputs
• Power Supply Rating: 24 VDC
• Special Functions: 4-Axis High-Speed Counters (100 kHz), 2-Axis Pulse Outputs (100 kHz)

Hardware Specifications

Omron PLC Backplane Bus Velocity & Signal Processing

The CP1L-M60DT1-D utilizes a high-speed system bus architecture delivering direct data exchange across 60 integrated I/O points without scan-cycle bottlenecking. Fast transistor output channels support direct connection to motion drives via 2-axis 100 kHz pulse output trains, while 4-axis 100 kHz differential encoder inputs process through high-speed internal counters. The CPU backplane maintains deterministic scan loop refreshing across local CP-series expansion units up to 180 total I/O points, optimizing system clock accuracy, ladder logic execution, and firmware execution speed.

Package Contents & Ordering Information

• 1x Omron CP1L-M60DT1-D Programmable Logic Controller
• 1x Screw terminal block protective cover assembly
• 1x Pre-installed lithium backup battery unit
• 1x Hardware installation instruction sheet

Field Installation Guidelines

• DIN Rail Mounting: Latch the CPU unit onto a 35 mm DIN rail (TH35-7.5/TH35-15). Ensure a minimum clear space of 50 mm above and below the housing for natural convection cooling.
• DC Power & Output Wiring: Connect 24 VDC system power to terminals + and -. Wire PNP sourcing transistor outputs to load terminals using positive common configuration. Tighten M3 terminal screws to 0.5 N m.
• Pulse Signal Shielding: Route high-speed pulse output and counter encoder signal wires using 360-deg braid-shielded twisted-pair cables. Ground shields at the controller end only.
• Functional Grounding: Connect the functional ground (FG) terminal to an earth ground electrode (under 100 Ohm resistance) using a conductor cross-section of at least 2.0 mm2.

Frequently Asked Questions

• What is the output signal polarity for the CP1L-M60DT1-D output channels?

  The T1 designation indicates sourcing transistor outputs (PNP), supplying positive 24 VDC potential to the connected field loads upon channel activation.

• Can the transistor output channels be hot-swapped during active system execution?

  No. Main 24 VDC supply power and field wiring power must be fully isolated before servicing terminal block connections or modifying expansion hardware.

• What is the maximum switching frequency of the transistor pulse outputs?

  The high-speed pulse output channels (A0 and A1) support pulse train output generation up to a maximum frequency of 100 kHz for servo and stepper positioning.

• How many expansion I/O units can be connected to the CP1L-M60DT1-D CPU?

  The CPU base module accepts up to 3 CP-series expansion units or expansion I/O units directly onto the right-side local expansion bus interface.

• What wire gauge size is recommended for the integrated screw terminals?

  Use solid or stranded copper conductors ranging from 0.08 mm2 to 2.0 mm2 (AWG 28 to AWG 14) terminated with insulated M3 crimp ferrules.

• What memory area stores volatile PLC setup parameters and counter data during power loss?

  The Holding Area (H0 to H511) and DM Area data registers are preserved by the internal lithium backup battery when system power is disconnected.

• What shielding method should be implemented for high-speed differential inputs?

  Utilize 360-deg braid-shielded cables routed in dedicated grounded steel conduit, physically isolated from high-voltage AC motor drives by at least 200 mm.

• What thermal constraints apply when operating at the maximum 55 deg C ambient limit?

  At 55 deg C continuous operating temperature, derate the simultaneous ON ratio of all combined digital input and transistor output points to 80 percent max.
