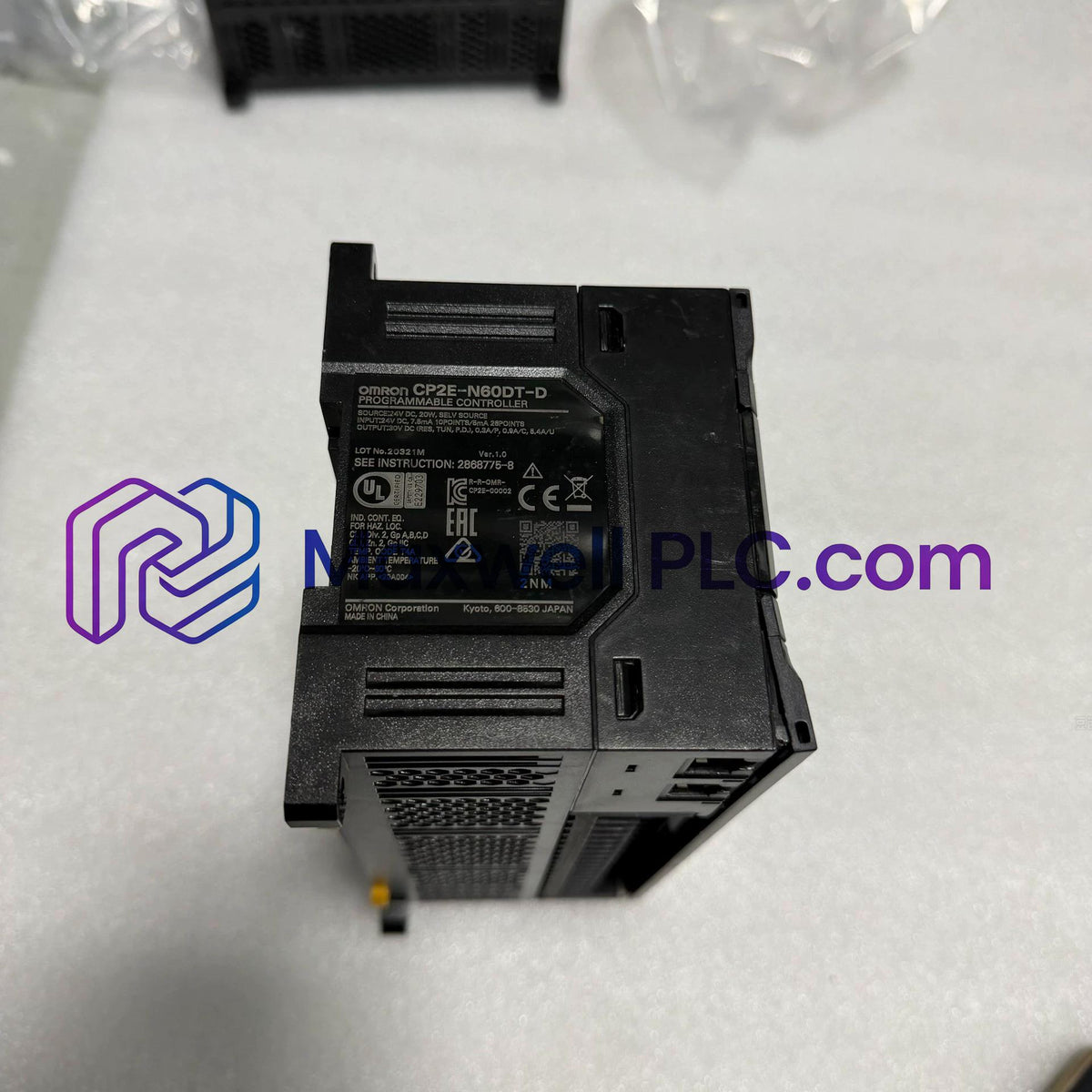

The Omron CP2E-N60DT-D, also cataloged as the CP2E-N60DT-D Programmable Controller, operates as a dedicated hardware component for discrete logical processing, pulse train execution, and Ethernet communication within industrial automation networks.

Technical Identifier Matrix

Hardware Specifications

PLC Backplane Velocity and Deterministic Control Integration

The Omron CP2E-N60DT-D features integrated dual Ethernet switching ports to handle socket services and Modbus TCP messaging with low transmission latency. Operating basic ladder instructions at 0.23 microseconds, the internal CPU maintains precise execution timing even when scaling local I/O density up to 60 built-in points. High-speed counter inputs capture quadrature feedback up to 100 kHz without increasing system scan cycles. Transistor sinking outputs deliver 100 kHz high-speed pulse outputs across 2 independent axes for precise positioning control, eliminating backplane expansion delays.

Package Contents & Ordering Information

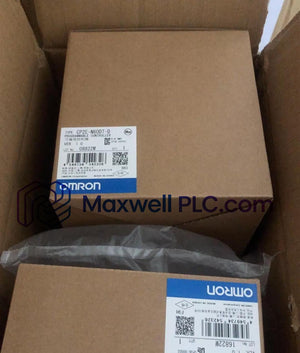

• 1x Omron CP2E-N60DT-D CPU Unit
• 1x Removable Terminal Block Assembly
• 1x Hardware Installation Sheet

Field Installation Guidelines

• DIN-Rail Mounting: Clip the unit onto a standard 35 mm DIN rail in a horizontal orientation to ensure unrestricted thermal airflow through upper and lower housing vents.
• Clearance Requirements: Maintain a minimum vertical clearance of 20 mm above and below the module housing for cable routing and heat convection.
• Power Supply Cabling: Connect an external 24 VDC power supply to the dedicated 24 VDC terminals using 0.5 to 1.25 mm sq copper conductors stripped to 7 mm.
• Shielding and Grounding: Direct-wire the functional ground (FG) terminal to an independent earth ground with ground resistance under 100 ohms. Route DC signal and Ethernet cables at least 100 mm away from high-voltage AC power lines to minimize noise interference.

Frequently Asked Questions

• What is the input voltage requirement for the CP2E-N60DT-D unit?

  The unit operates on 24 VDC power with current consumption specs of 0.71 A at 5 VDC internal logic power and 0.03 A at 24 VDC.

• What output load switching configuration does this processor support?

  It provides 24 transistor sinking outputs rated for switching DC loads up to 0.3 A per point at 24 VDC.

• What is the total integrated I/O point capacity on the CPU?

  The unit contains 60 total discrete points, structured as 36 DC input channels (24 VDC) and 24 transistor sinking output channels.

• What operating temperature range is specified for cabinet integration?

  The hardware is designed for operation in ambient enclosure temperatures from 0 deg C to 55 deg C under non-condensing conditions.

• What are the high-speed counting capabilities built into the CPU?

  It includes 6 high-speed counting channels handling up to 100 kHz single-phase signals or 50 kHz phase-differential encoder inputs.

• How many pulse train output axes are available for motion control?

  The controller provides 2 high-speed pulse output channels capable of pulse generation up to 100 kHz.

• What cable gauge should be used for power and I/O terminal connections?

  Use solid or stranded copper wire with cross-sectional areas between 0.5 mm sq and 1.25 mm sq (AWG 20 to AWG 16).

• What ground resistance value is required for functional grounding?

  The functional ground terminal must be connected to an earth ground network providing less than 100 ohms resistance.
