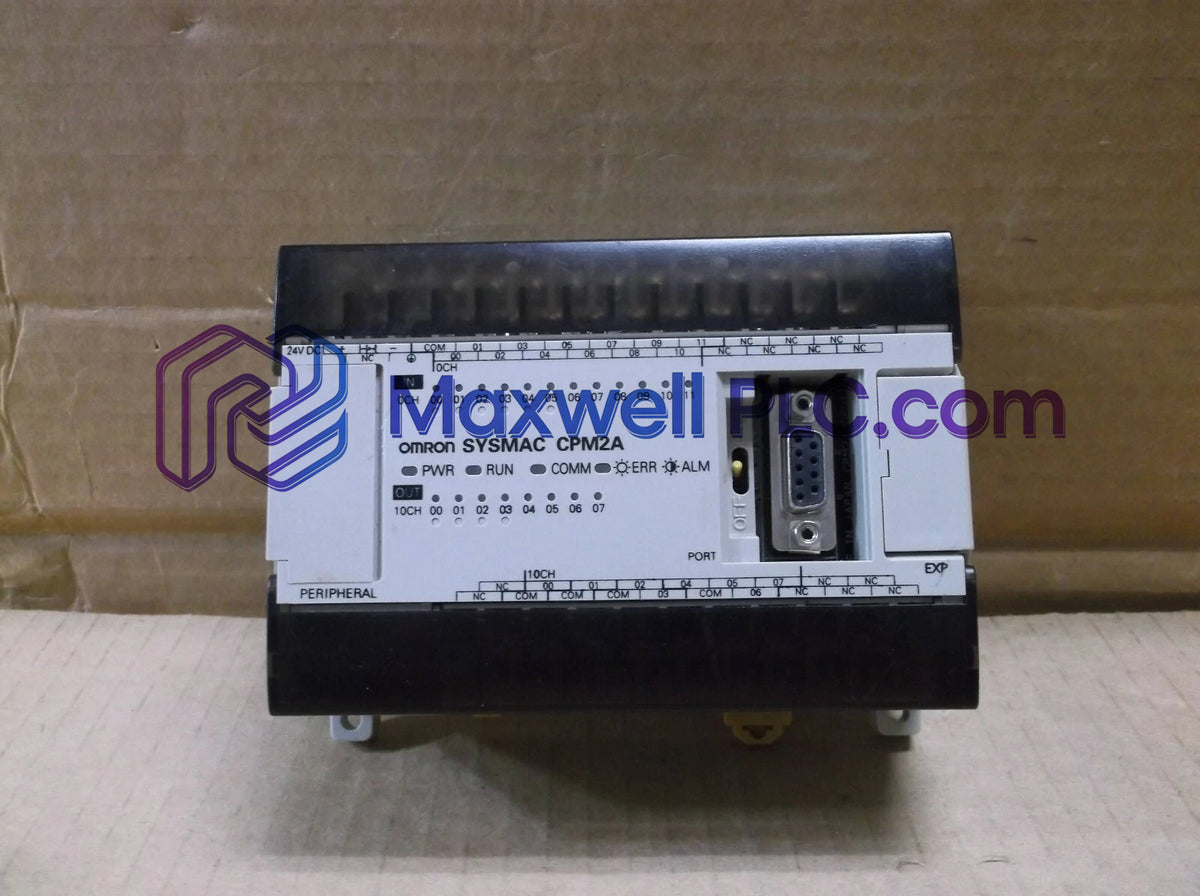

The Omron CPM2A-20CDT-D, also cataloged as the CPM2A-20CDT-D Programmable Controller, operates as a dedicated hardware component for direct physical/electrical execution within CPM2A Series industrial automation platforms. The controller accepts 12 discrete 24 VDC inputs and manages 8 NPN transistor outputs, processing high-speed encoder feedback and output pulse positioning trains under a 20.4 to 26.4 VDC supply voltage range.

Technical Identifier Matrix

Hardware Specifications

I/O Density Scaling and Backplane Bus Velocity

The Omron CPM2A-20CDT-D features an internal logic processor that maintains execution speeds between 0.26 us and 0.64 us for standard instruction cycles. Optimized backplane bus velocity provides low-latency communication between core CPU processing registers and direct physical I/O points. The architecture supports I/O density scaling by accepting up to 3 CPM1A expansion modules via the internal expansion bus header, expanding total system I/O capability without degrading execution determinism or pulse output generation rates.

Package Contents & Ordering Information

• 1x Omron CPM2A-20CDT-D CPU Unit
• 1x Removable Terminal Block Cover Unit
• 1x Hardware Installation Datasheet

Field Installation Guidelines

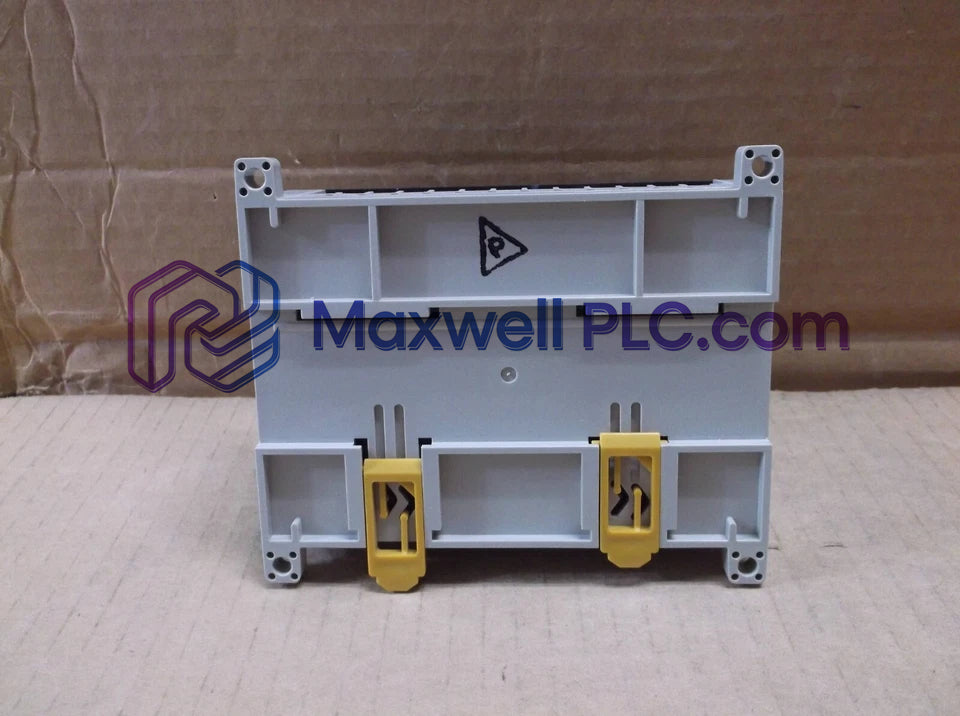

• Mechanical Installation: Secure unit onto a 35 mm DIN rail or mount directly to a control panel using M4 screws. Maintain a minimum clearance of 50 mm above and below the module housing for convective thermal airflow.
• Power Supply Connections: Wire a regulated 24 VDC power supply (20.4 to 26.4 VDC limit) to the specified DC input terminals. Ensure DC lines are physically routed away from high-voltage AC conductors.

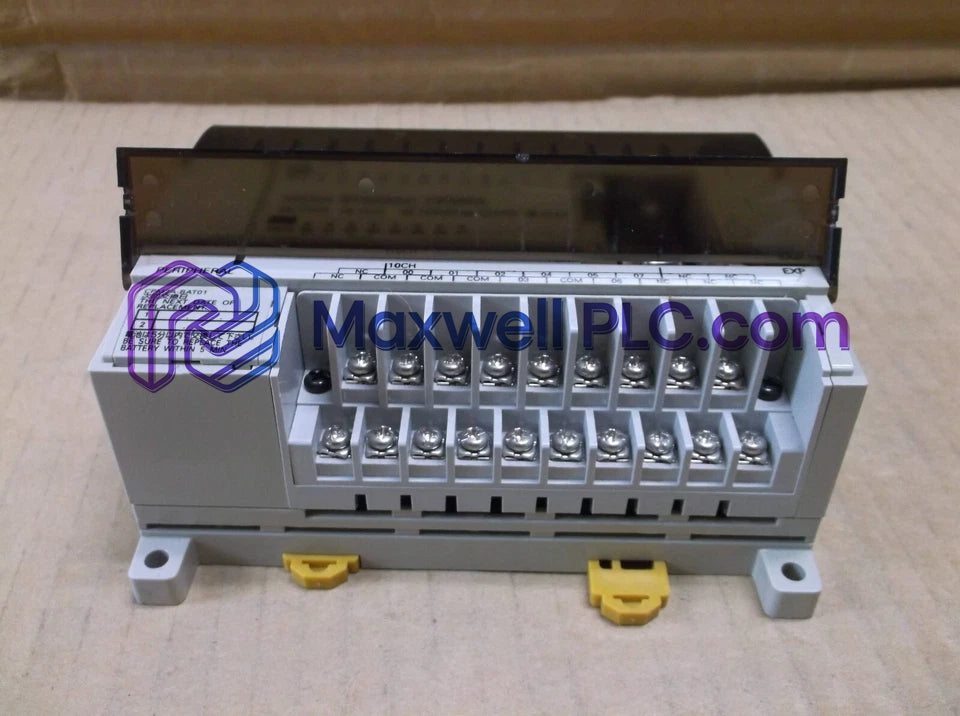

• Transistor Output Wiring: Connect external loads between the positive side of the DC power circuit and individual output terminals. Output commons connect to the negative DC reference.
• Grounding Requirements: Wire the functional earth ground terminal directly to the panel system ground bus using conductor wire with a minimum cross-section of 2.0 mm sq.
• Signal Shielding: Ground encoder cabling and high-speed input lines using Shielded Twisted Pair (STP) wire with 360-deg braid shield clamps attached directly to cabinet earth.

Frequently Asked Questions

• Q: What is the operating input power supply range for the CPM2A-20CDT-D?

  A: The controller runs on a nominal 24 VDC supply with an allowable operational range of 20.4 to 26.4 VDC.

• Q: What output switching configuration and load limits are implemented?

  A: Outputs are NPN sinking transistors rated for switching 4.5 to 30 VDC at up to 0.3 A maximum per output channel.

• Q: What is the logic processing rate of the central CPU?

  A: Basic ladder instruction execution timing ranges between 0.26 us and 0.64 us per basic command block.

• Q: How many built-in high-speed pulse channels are available on this unit?

  A: The module features 1 high-speed encoder counter input (20 kHz) and 2 transistor pulse output channels (10 kHz).

• Q: How many expansion modules can be added to increase I/O capacity?

  A: Up to 3 CPM1A expansion I/O or function modules can be connected directly to the CPU expansion bus.

• Q: What are the program memory and data register capacity parameters?

  A: Non-volatile integrated memory provides 4 kWords for user application program logic and 2 kWords for data registers.

• Q: What are the outer physical dimensions of the CPM2A-20CDT-D housing?

  A: The main unit physical dimensions strictly measure 13.0 cm width by 9.0 cm height by 5.5 cm depth.

• Q: How should inductive DC loads be protected when connected to NPN outputs?

  A: External flywheel diodes must be connected in parallel across inductive DC loads to clamp back-EMF voltage transients.
