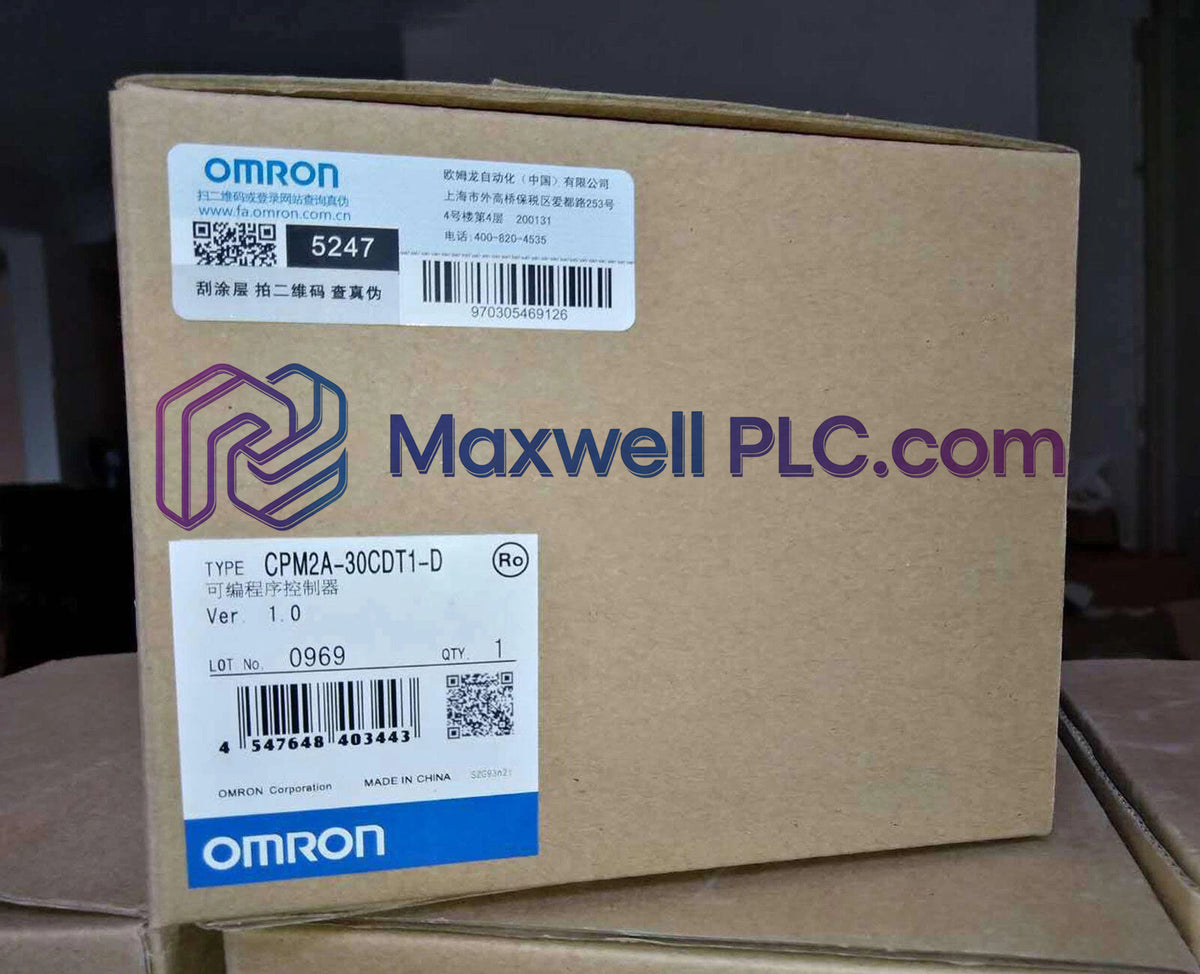

The Omron CPM2A-30CDT1-D, also cataloged as the CPM2A-30CDT1-D Programmable Controller, operates as a dedicated hardware component for direct physical/electrical execution within CPM2A Series industrial automation networks. Operating on a 20.4 to 26.4 VDC auxiliary power rail, the unit processes 18 discrete 24 VDC input channels and drives 12 PNP sourcing transistor outputs, executing real-time logic routines and controlling high-speed pulse feedback or positioning trains.

Technical Identifier Matrix

Hardware Specifications

I/O Density Scaling and Backplane Bus Velocity

The Omron CPM2A-30CDT1-D utilizes an optimized central CPU engine designed for minimal scan latency, executing basic ladder commands within a 0.26 us to 0.64 us execution window. High internal backplane bus velocity facilitates rapid data updates between user application registers and PNP sourcing output drivers. To facilitate I/O density scaling, up to 3 CPM1A expansion units can be attached via the side expansion port interface, increasing total discrete point density while retaining deterministic signal processing across the integrated 20 kHz high-speed counter channel.

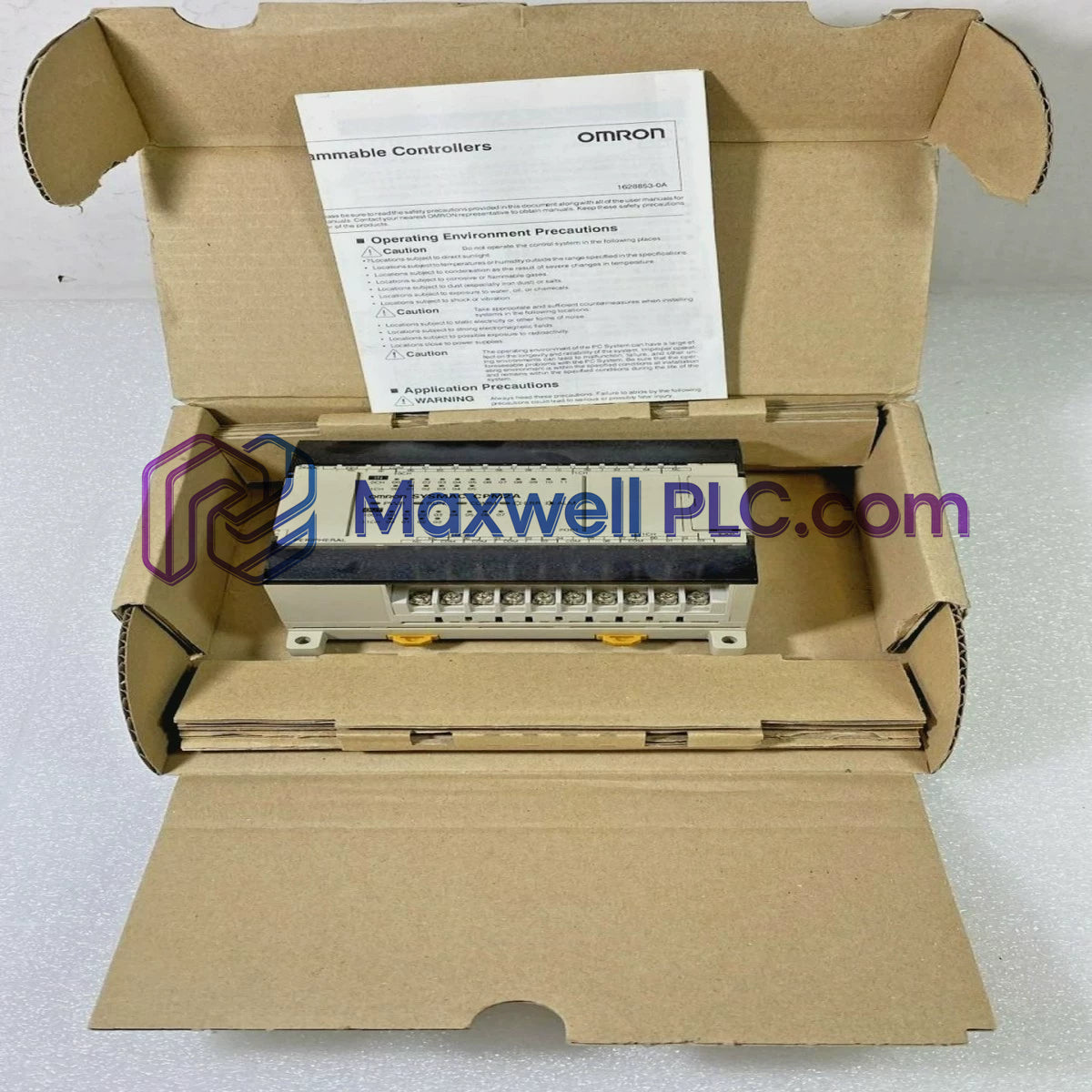

Package Contents & Ordering Information

• 1x Omron CPM2A-30CDT1-D CPU Unit
• 1x Removable Terminal Block Cover Assembly
• 1x Hardware Installation Sheet

Field Installation Guidelines

• Mechanical Installation: Install horizontally onto a standard 35 mm DIN rail or secure directly to a mounting plate using M4 screws. Allow at least 50 mm vertical clearance above and below the housing for free air convection.
• DC Power Wiring: Connect a regulated 24 VDC power supply (20.4 to 26.4 VDC limit) to the designated DC input terminals. Separate low-voltage DC power conductors from high-voltage AC conductors.
• PNP Transistor Load Connections: Connect external loads between individual PNP output terminals and the negative DC power rail. Supply positive voltage directly to the output common terminal rail.
• Grounding Requirements: Wire the functional earth ground terminal directly to the panel earth ground bar using copper cabling with a minimum cross-section of 2.0 mm sq.
• Signal Shielding: Ground high-speed encoder input lines using Shielded Twisted Pair (STP) cabling with a 360-deg braid shield clamp secured to the panel ground bus.

Frequently Asked Questions

• Q: What is the required operating voltage range for the CPM2A-30CDT1-D?

  A: The module operates on a nominal supply of 24 VDC within a allowable operating window of 20.4 to 26.4 VDC.

• Q: What are the output stage specifications for the PNP channels?

  A: Outputs are PNP sourcing transistors rated for switching 4.5 to 30 VDC loads at up to 0.3 A per point.

• Q: How many built-in input and output points are available on this model?

  A: The CPU integrates 30 total discrete points, divided into 18 inputs (24 VDC) and 12 PNP sourcing transistor outputs.

• Q: What execution processing speed does the central CPU achieve?

  A: The processor executes basic ladder instructions at speeds between 0.26 us and 0.64 us per command block.

• Q: What integrated pulse input and output channels are provided?

  A: The unit features 1 high-speed encoder input channel (20 kHz) and 2 transistor pulse output channels (10 kHz).

• Q: How many expansion modules can be connected to the CPU base unit?

  A: Up to 3 CPM1A expansion I/O or special function modules can be added via the lateral expansion interface.

• Q: What are the exact physical dimensions of the CPM2A-30CDT1-D module?

  A: Physical outer dimensions strictly format to 13.0 cm width by 9.0 cm height by 5.5 cm depth.

• Q: What protection device must be installed across external DC inductive loads?

  A: External reverse-biased flywheel diodes must be wired in parallel across DC inductive loads to absorb voltage transients.
