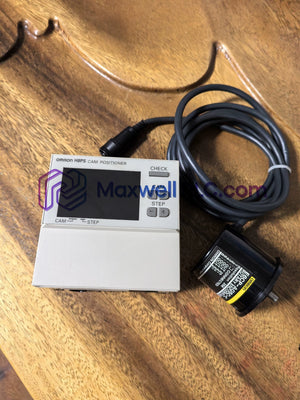

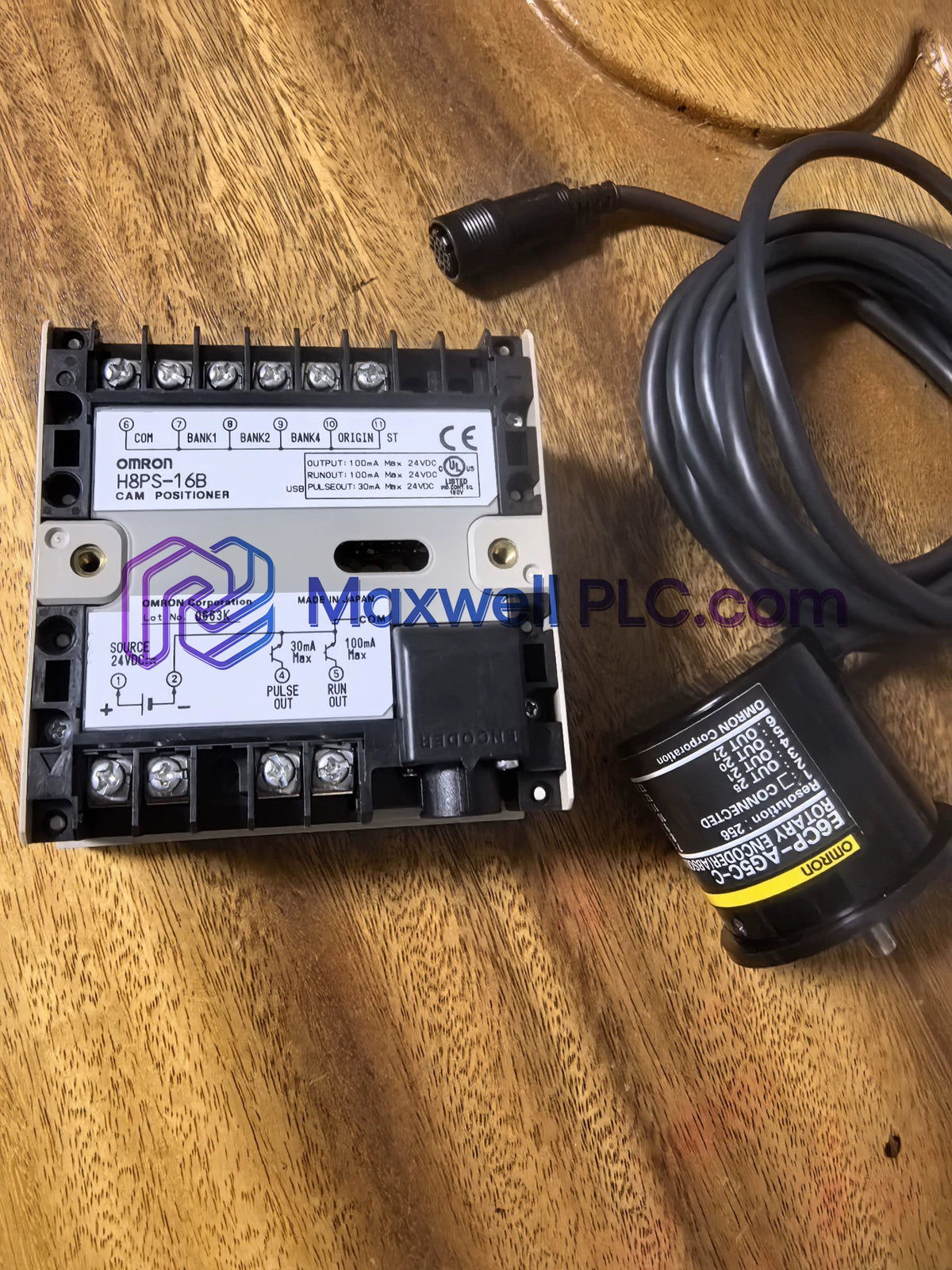

The Omron H8PS-16B, also cataloged as the H8PS Cam Positioner, operates as a dedicated hardware component for multi-channel angular position decoding and output trigger execution within localized motion control architectures.

Product Code and Nomenclature Mechanics

The complete part number designation defines the internal output hardware, display options, and chassis form factor:

• H8PS: Core series designator for compact electronic cam switch controllers.
• 16: Specifies 16 discrete transistor switching channels for complex angular event profiling.
• B: Identifies the integrated liquid crystal display equipped with an internal backlight assembly.

Electrical and Enclosure Specifications

Deterministic Angle Processing and I/O Density Scaling

By processing absolute encoder inputs via dedicated internal hardware circuits, the H8PS-16B bypasses programmable logic controller scan time limitations and backplane bus communication velocity bottlenecks. Localized logic execution eliminates firmware flash compatibility dependencies and network jitter, ensuring microsecond-level switching across all 16 transistor output points. High I/O density scaling allows precise angle management without requiring high-speed digital input/output expansions on primary industrial networks like EtherNet/IP or Profinet.

Package Contents

• 1 x Omron H8PS-16B Cam Positioner Enclosure
• 1 x Flush-mount Mounting Adapter with Gasket
• 1 x Technical Instruction Manual

Mechanical Mount and Wiring Architecture

Chassis Installation

• Prepare a standard 1/4 DIN square panel cutout measuring 92 x 92 mm (+0.8/-0 mm).
• Slip the rubber sealing ring over the rear housing and push the unit into the front panel cutout.
• Attach the rear mounting bracket and tighten side screws evenly until the front seal compresses firmly.

Signal Circuit Connections

• Connect the dedicated absolute encoder cable to the terminal block using twisted-pair wiring.
• Verify DIP switch positions for desired encoder rotation direction (CW vs. CCW) prior to supplying logic power.
• Connect the outer shield wire of the encoder cable directly to the designated functional ground terminal.

Technical Frequently Asked Questions

• What driver logic is used for the 16 switching outputs on the H8PS-16B?

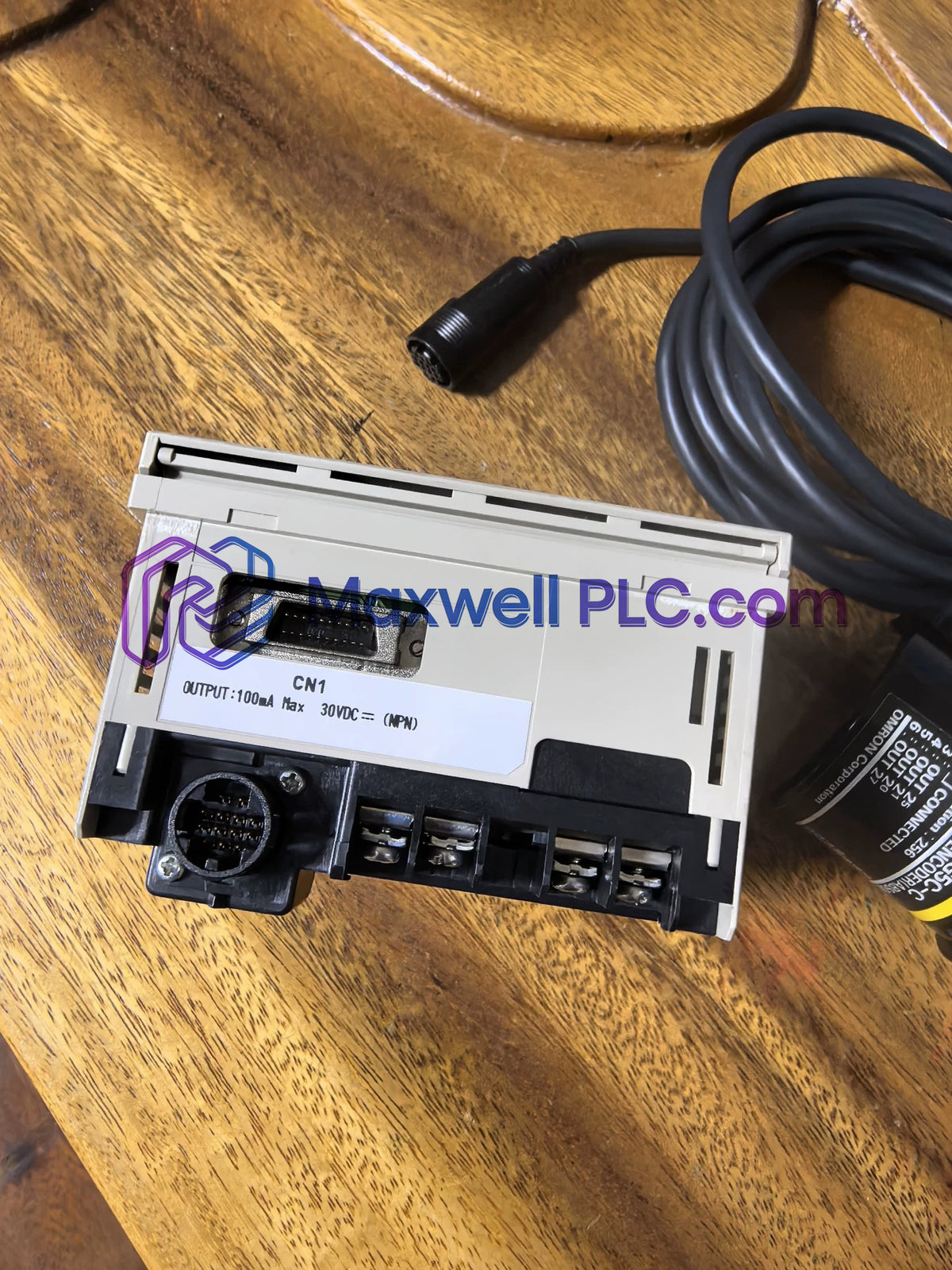

  The unit utilizes NPN open-collector transistor outputs capable of sinking load current directly to the power common.

• How is the rotation orientation adjusted for non-standard encoder mounting?

  A built-in hardware DIP switch flips the internal position decoding algorithm between forward (CW) and reverse (CCW).

• What panel cut-out dimensions are necessary for mounting this controller?

  The unit requires a standard 1/4 DIN cutout measuring 92 x 92 mm, with an external bezel width and height of 96 x 96 mm.

• Does the display remain visible in unlit or low-visibility control cabinets?

  Yes, the integrated LCD screen includes an internal backlight driver designed for low-ambient panel environments.

• Can the controller operate from a standard 24 VDC power supply?

  No, this specific model requires an AC operational voltage source ranging strictly between 20.4 and 26.4 VAC.

• How does localized processing affect controller response time compared to PLC I/O?

  Direct hardware decoding operates independently of PLC CPU scan loops, avoiding backplane bus latency and cycle delays.

• What measures prevent electrical noise interference on the encoder input lines?

  Run shielded twisted-pair cables inside dedicated grounded metal conduits separated from high-voltage AC motor wires.

• What front-panel ingress protection rating is achieved after flush mounting?

  When secured using the provided rubber mounting packing ring, the front face panel conforms to NEMA 4 / IP66 standards.
