The Omron NX-EC0112, also cataloged as the NX-EC01 Incremental Encoder Input Unit, operates as a dedicated hardware component for single-channel quadrature pulse counting and position feedback processing within Sysmac NX-series backplane architectures.

Part Number Breakdown & Architecture

• NX: Designates compatibility with the Omron NX-series I/O and position interface module family.
• EC: Identifies the position interface functional category for incremental encoder inputs.
• 0112: Specifies a 1-channel configuration supporting 24 VDC voltage inputs via a push-in screwless terminal block.

Technical Performance Specifications

Deterministic Bus Refreshing & I/O Scaling

The module supports synchronous I/O refreshing and task period prioritized execution across deterministic networks such as EtherCAT. High-speed counter registers sample incoming phase A, B, and Z encoder pulses without inducing processor latency. Internal firmware flash compatibility ensures synchronized pulse registration across high I/O density scaling configurations, maintaining precise position tracking during high-frequency motor feedback evaluation.

Standard Package Contents

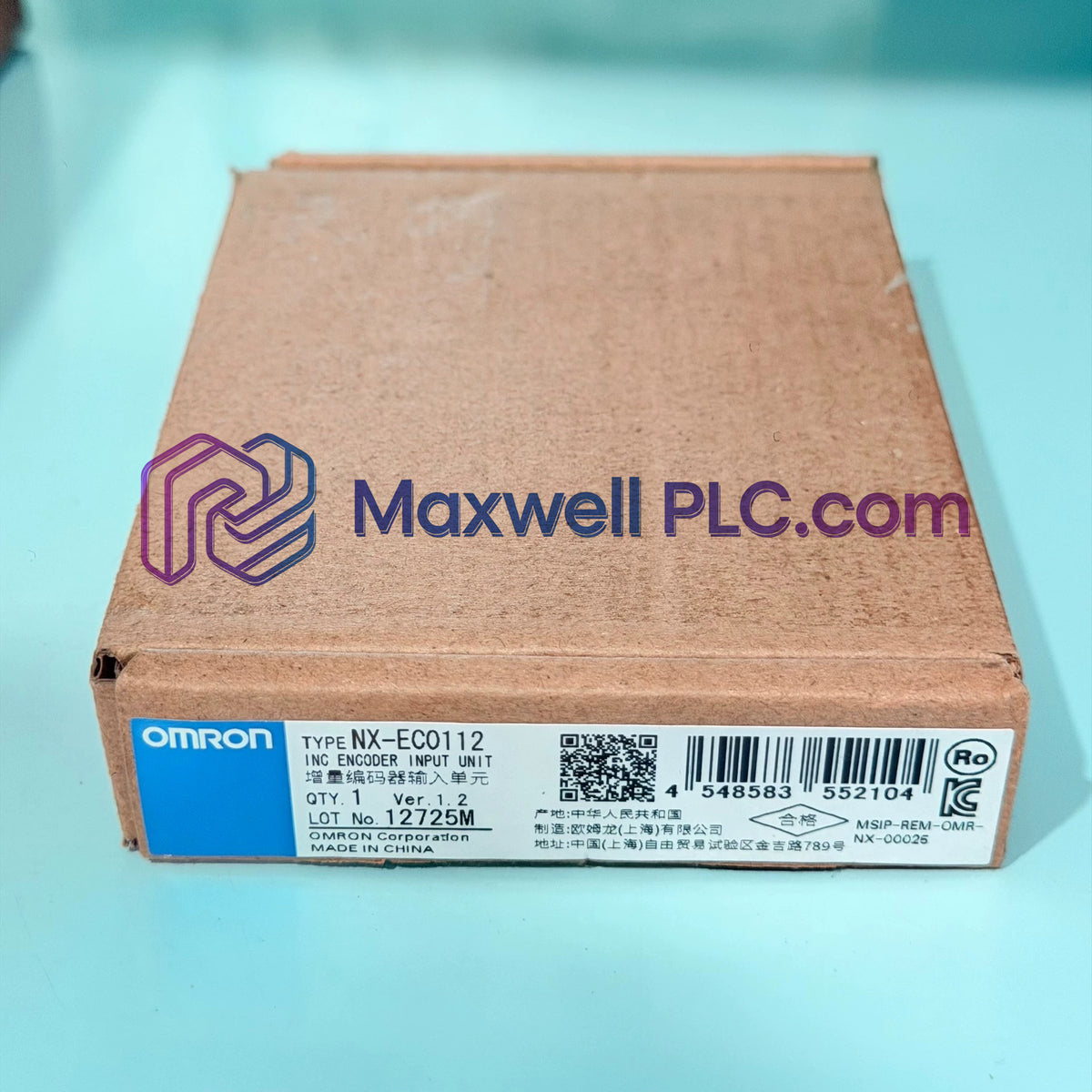

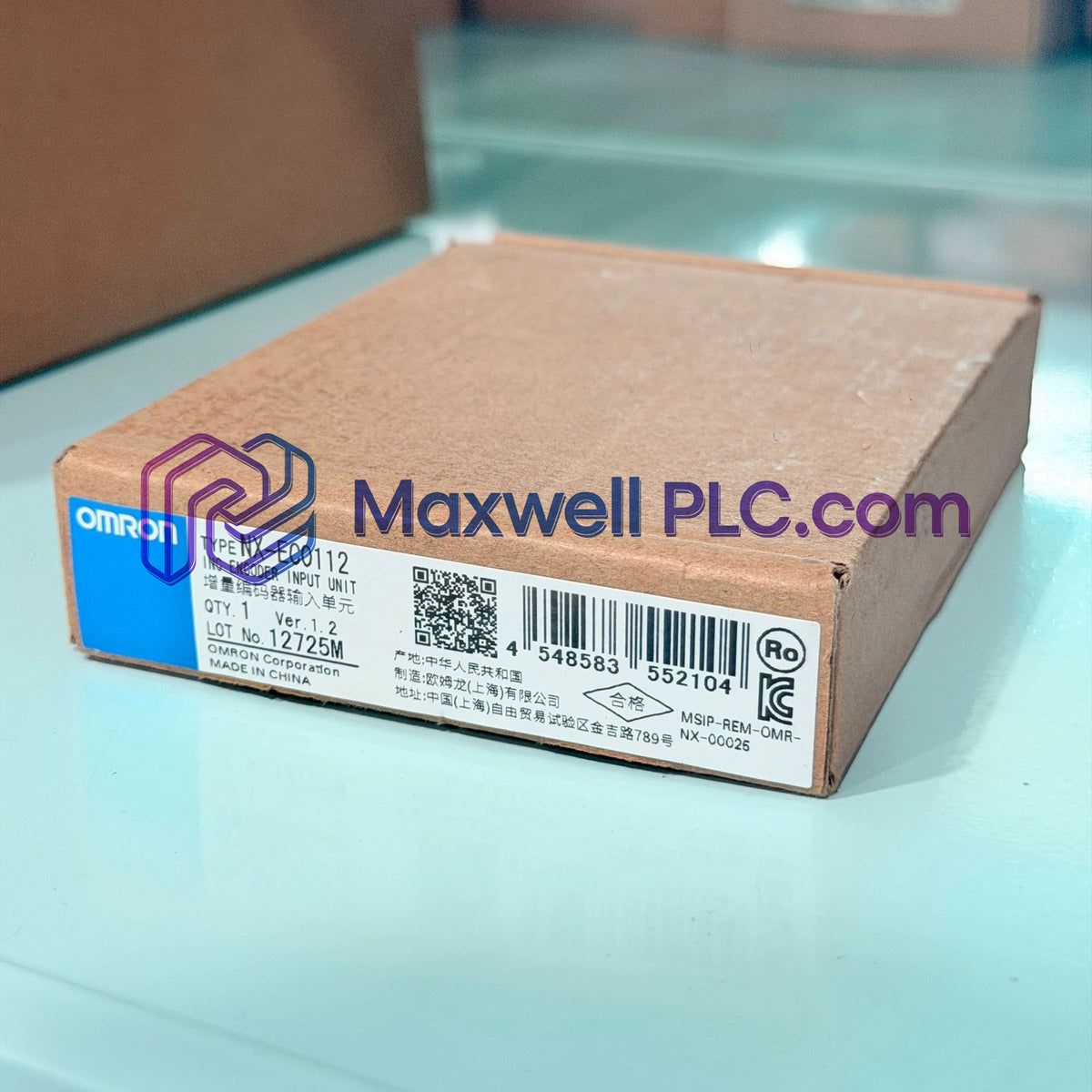

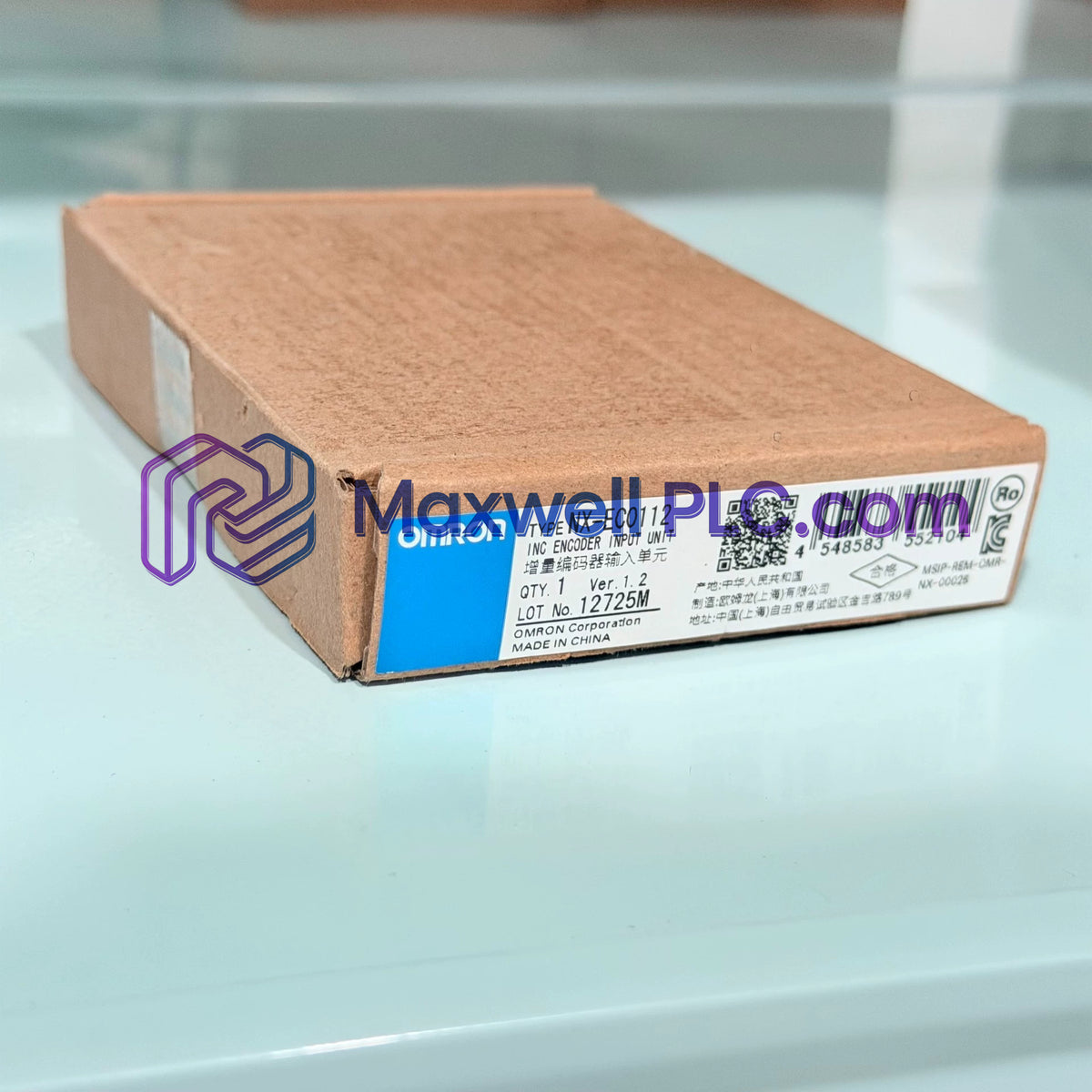

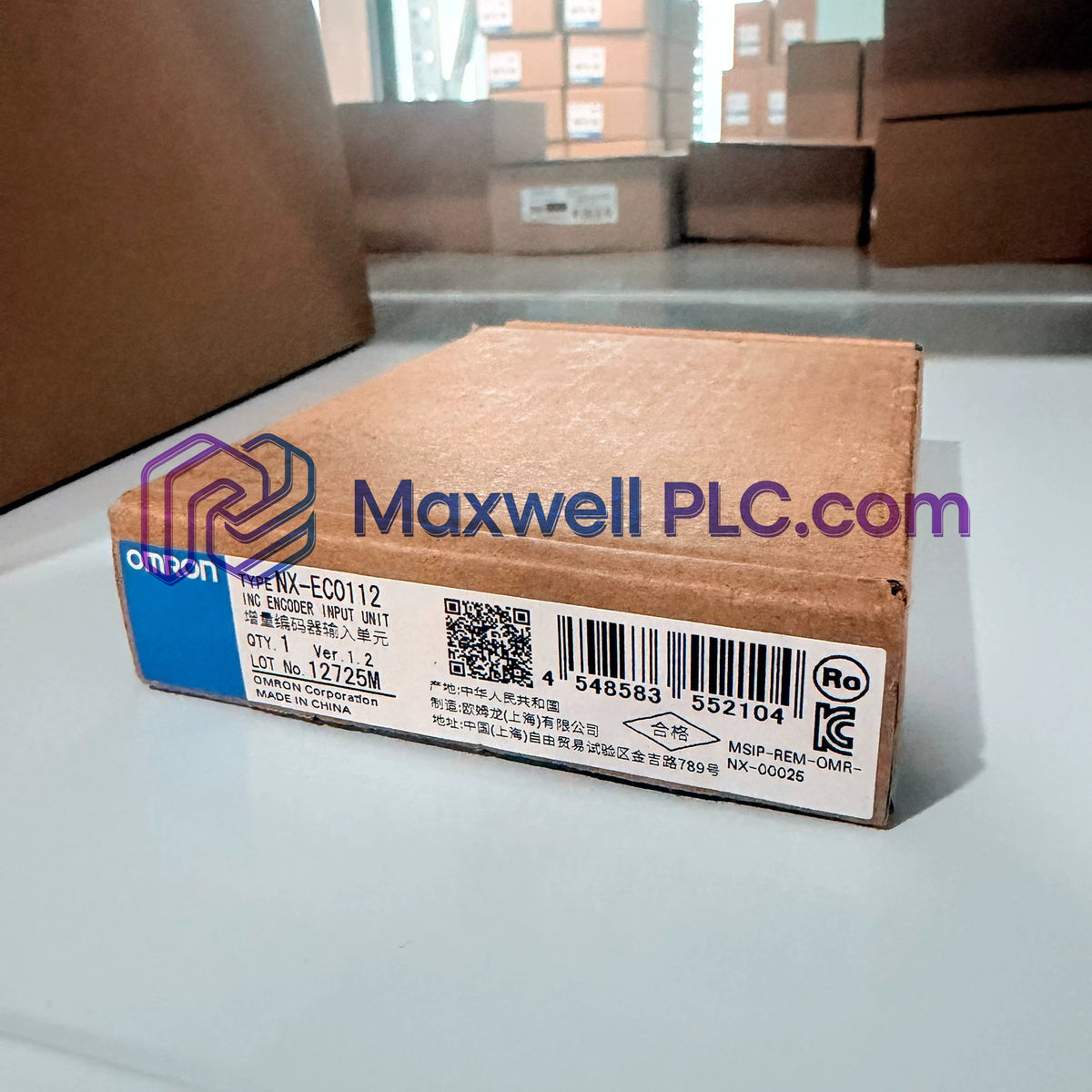

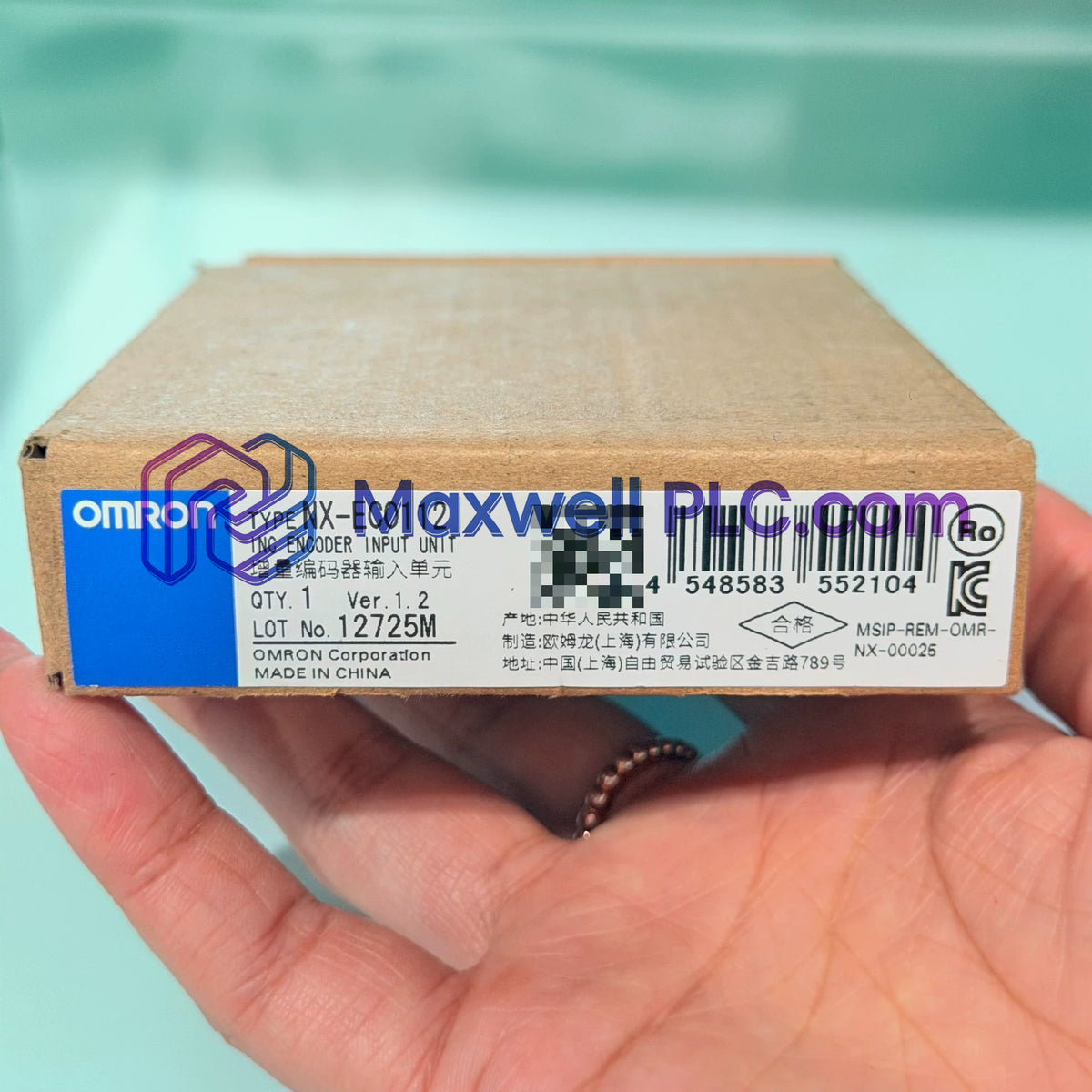

• 1 x Omron NX-EC0112 Incremental Encoder Input Unit
• 1 x 16-Pin Screwless Clamping Terminal Block
• 1 x Instruction Manual

Field Installation & Wiring Guidelines

DIN Rail Mounting & Connection

• Mount the module securely on a standard 35 mm DIN rail adjacent to the CPU or EtherCAT Coupler Unit.
• Press the unit firmly until the side connector latches engage to establish backplane power and communication connections.

Encoder Signal Wiring

• Strip solid or ferruled stranded wires to the specified length and insert them directly into the 16-terminal screwless block.
• Route 24 VDC phase A, B, and Z encoder signal lines in shielded cables separate from AC power circuits.

Shielding & Grounding Standard

• Connect the cable shield directly to the functional earth terminal of the NX-series rack to prevent noise interference.

Technical Questions & Answers

• How many encoder input channels are available on the NX-EC0112 unit?

  The module features a single hardware channel dedicated to processing 24 VDC incremental encoder signal inputs.

• What input signals are supported by the counter channel interface?

  The channel processes quadrature phase A, phase B, and phase Z index signals alongside 3 auxiliary external inputs.

• What terminal connection style is integrated on the front panel?

  Wiring connects through a removable 16-terminal screwless clamping push-in terminal block.

• What I/O refreshing methods can be selected for this input module?

  The unit supports Free-Run refreshing, Synchronous I/O refreshing, and Task Period Prioritized refreshing.

• What is the maximum physical net weight of the standalone module?

  The module has a standalone physical mass weight of 70 g max.

• What electrical input signal format does the encoder interface require?

  The input circuits accept 24 VDC voltage input signals from open collector or complementary encoder outputs.

• How is noise immunity maintained on high-speed pulse inputs?

  Shielded twisted-pair wiring grounded to the functional earth terminal must be used for encoder signal lines.

• Can the terminal block be removed without disconnecting individual field wires?

  Yes, the 16-terminal screwless clamping block detaches directly from the unit body to facilitate maintenance.
