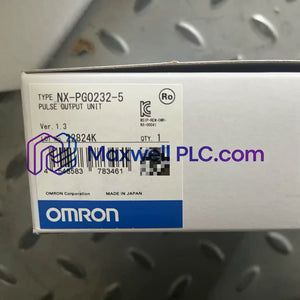

The Omron NX-PG0232-5, also cataloged as the NX-PG0232 Pulse Output Unit, operates as a dedicated hardware component for open-loop pulse train positioning within Sysmac NX network architectures.

Model Suffix Structure & Functional Decoding

• NX: Sysmac modular I/O series platform standard.
• PG0: Pulse output unit functionality classification.
• 2: Dual-channel high-speed motion control architecture.
• 3: Specific I/O circuit configuration and driver interface electrical specifications.
• 2: Supports synchronous refreshing for multi-axis coordinated motion timing.
• 5: External connection interface via 34-terminal MIL connector (1 connector).

Electrical & Physical Specifications

Deterministic Network Bus & Execution Compatibility

The NX bus architecture preserves high backplane bus communication velocity across the I/O rack, delivering low-jitter timing during synchronous I/O refreshing cycles. Dedicated internal FPGA handling provides firmware flash compatibility and supports EtherCAT deterministic networks, ensuring precision pulse train output to pulse-input servo drives and stepper motor controllers without host CPU loop delays.

Box Contents & Accessories

• 1 x Omron NX-PG0232-5 Pulse Output Module

Field Cabling & Hardware Assembly

DIN Rail Attachment

Latch the module onto a standard 35 mm DIN rail in an upright vertical orientation. Ensure side locking mechanisms lock firmly into adjacent NX I/O units to prevent backplane contact loss.

MIL Connector Termination

Wire control signals using a pre-assembled 34-pin MIL connector cable assembly. Limit line driver signal cable runs to a maximum of 10 m and general digital I/O cables to 3 m.

Shielding & Grounding Execution

Ground all cable shielding directly to the panel ground bar using low-impedance grounding clamps to minimize electrical noise pick-up on high-speed pulse channels.

Frequently Asked Questions

• What is the maximum pulse output rate supported by the NX-PG0232-5?

  The module generates pulse train commands at a maximum output speed of 4 kpps (4,000,000 pps).

• What physical connector type is used for external field wiring?

  Field I/O signals connect via a single 34-terminal MIL connector on the front panel.

• How many control channels are integrated into a single unit?

  The module provides 2 independent channels for controlling stepper or pulse-input servo drives.

• What pulse output formats can be selected for axis control?

  It supports Forward/Reverse pulse outputs, Pulse + Direction outputs, or Phase differential (x1, x2, x4) outputs.

• What are the maximum allowable cable lengths for field connections?

  Line driver pulse output cables are rated for up to 10 m, while auxiliary input/output lines must not exceed 3 m.

• What I/O refreshing methods are supported by this unit?

  The module supports both synchronous I/O refreshing and task period prioritized refreshing methods.

• What current is drawn from the external I/O power supply?

  The module draws a maximum current of 50 mA from the external I/O power supply circuit.

• Does this module support hot-swapping on the NX bus?

  No, power to the NX bus and I/O power supply must be switched off before removing or inserting the unit.
